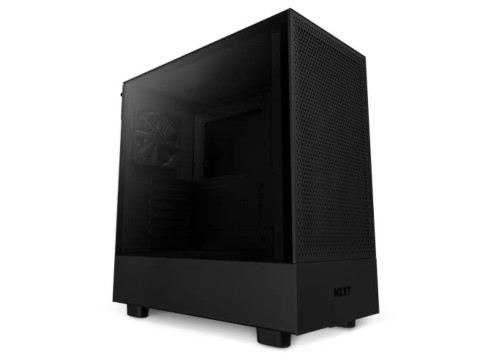

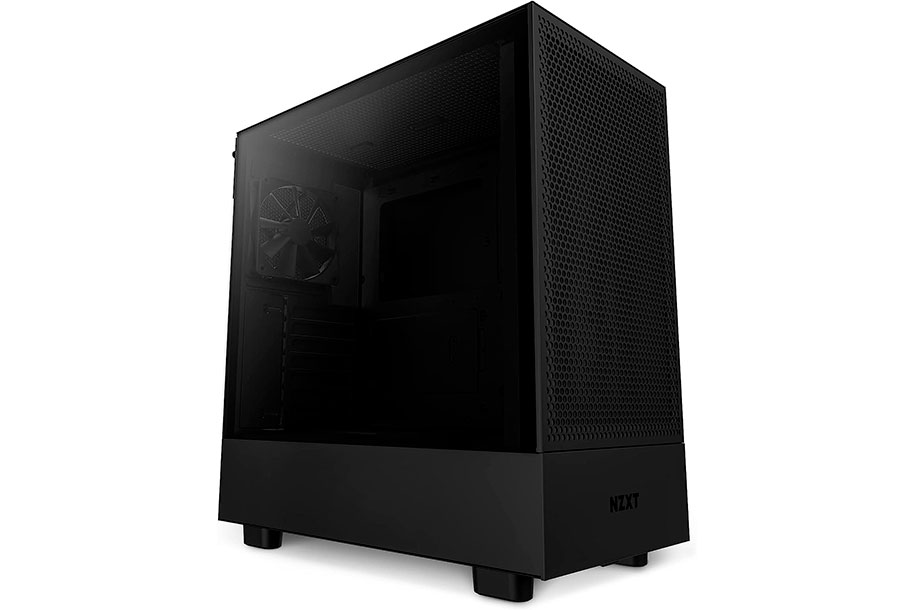

The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
מפרט
סוג מארז
ATX
תאימות ללוח אם
ATX
\ Micro ATX
\ Mini ITX
ספק כח
ATX (not included)
Hard Drive 3.5
1
Hard Drive 2.5
1+1
Expansion slots
7
יציאות קדמיות
USB 3.0
\ Earphone/Mic
\ USB Type-C
עיצוב תרמי
Rear:1 x F Series Quiet 120mm (Case Version) included
Bottom:1 x F Series Quiet 120mm (Case Version) included
גובה מקסימלי קירור למעבד (ממ)
160
מידות
Height:464mm (With Feet)
Width:227mm
Depth:446mm
פילטר אבק
שליף
מידע

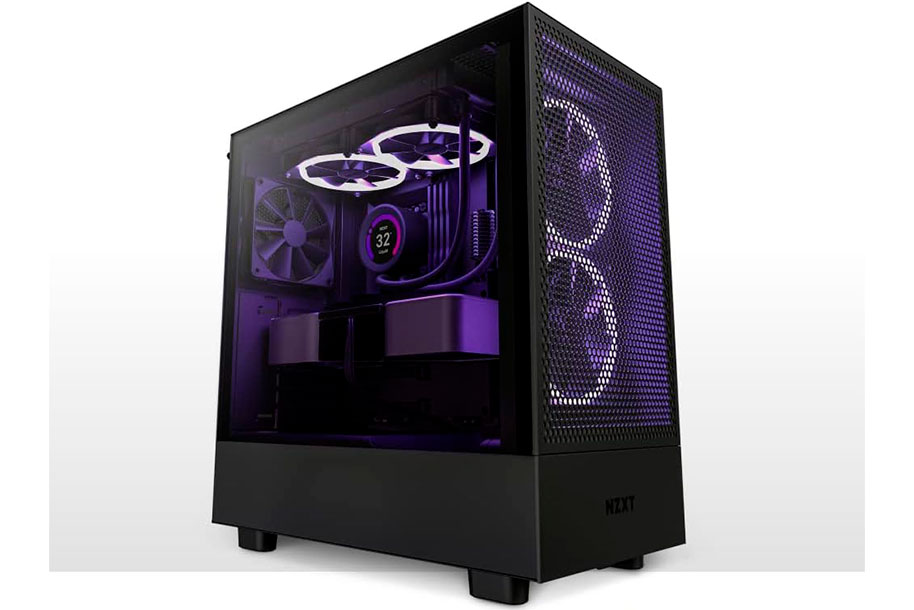

HIGH-PERFORMANCE AIRFLOW

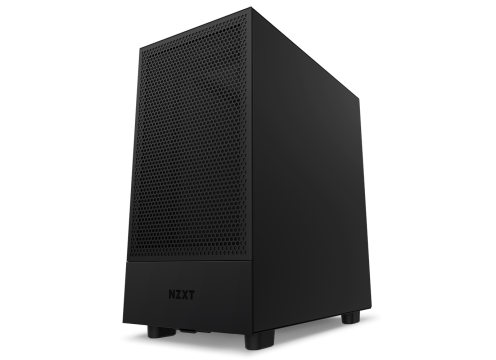

Perforated front and top panels direct filtered air through the case to cool down components and enhance performance.
DEDICATED GPU FAN

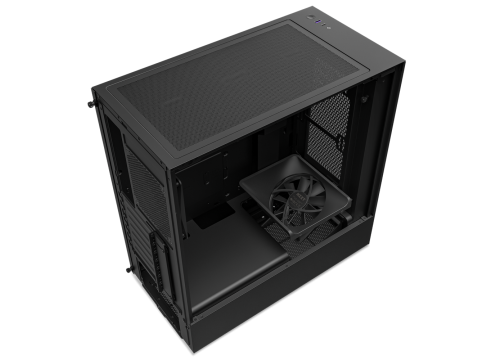

An angled 120mm fan draws air from below the case to provide direct cooling for your power-hungry graphics card.
SPACIOUS COOLING SUPPORT
Up to 280mm radiator support in the front, 240mm up top, and 120mm in the rear. Comes with two pre-installed 120mm fans.
READY FOR PERFORMANCE
Fits most NVIDIA GeForce RTX 40 Series graphics cards with its 365mm max GPU clearance. Display your GPU vertically using the NZXT Vertical GPU Mounting Kit (sold separately).
EASILY MANAGE CABLES

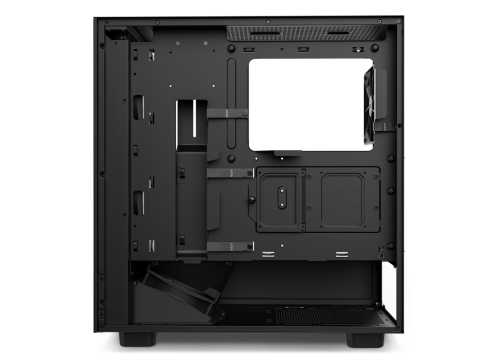

Wide cable channels with hooks, bridges, and straps take the guesswork out of organized cable management.
