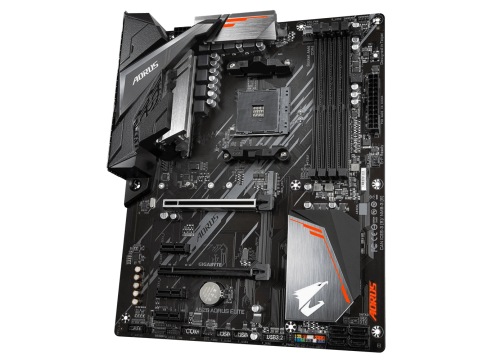

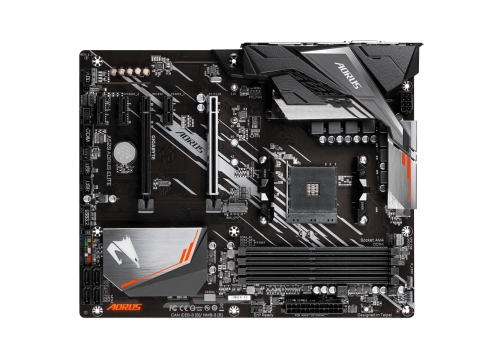

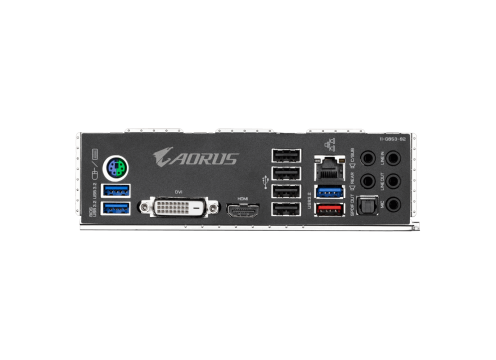

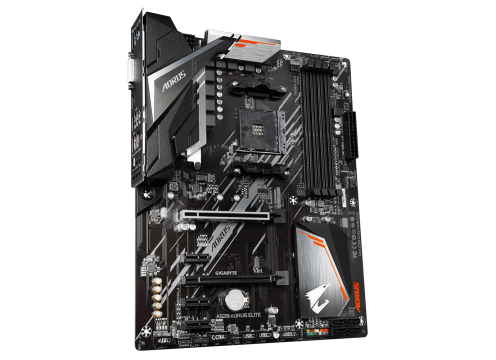

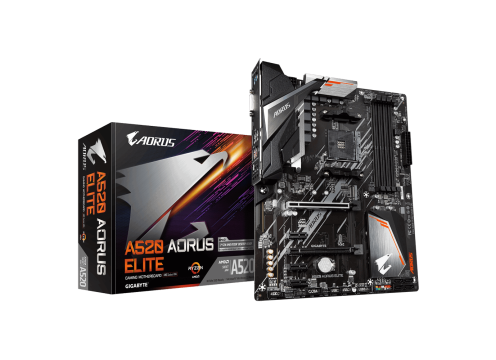

AMD A520 AORUS Motherboard with Pure Digital VRM Solution, ALC1200 Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Pre-installed IO Shield Design
מפרט
ערכת שבבים
AMD A520
תושבת מעבד
AM4
סוג זכרון
DDR4
תצורת לוח
ATX
כרטיס מסך משולב
AMD APU
חיבור גרפי
DVI
\ HDMI
חיבורי תקשורת
LAN 1 Gigabit
חיבור USB קדמי
USB 2.0
\ USB 3.2
RAID
0,1,10
כרטיס קול משולב
5 port + S/PDIF
סלוטים DDR4
4
PCI-E x16
1
PCI-E x1
3
USB 3.2
6
USB 2.0
8
ממשק אחסון
SATA3
\ M.2 PCIe
\ M.2 SATA
חיבורי SATA3
4
חיבורי M.2 PCIe
1 (SATA and PCIe support)
חריצי הרחבה
Trusted Platform Module - TPM
חיבור סיריאלי COM
אופציונלי
אריזה
Retail - קופסה
הערות
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
מידע
| The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design. |  |
 |

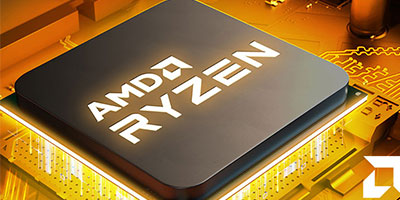

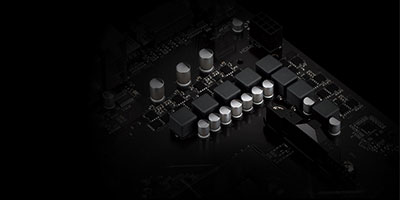

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. |
| NVMe PCIe 3.0 x4 M.2 Connector (Up to 32 GB/s) AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. |
 |
 |

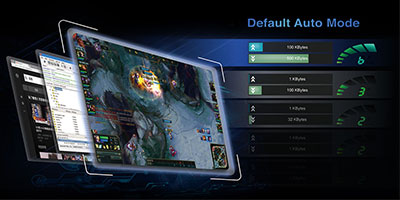

Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. |
