LIAN-LI Case Test Bench EATX White
P/N:
PC-T70W
Warranty:
1 Year
Manufacturer:

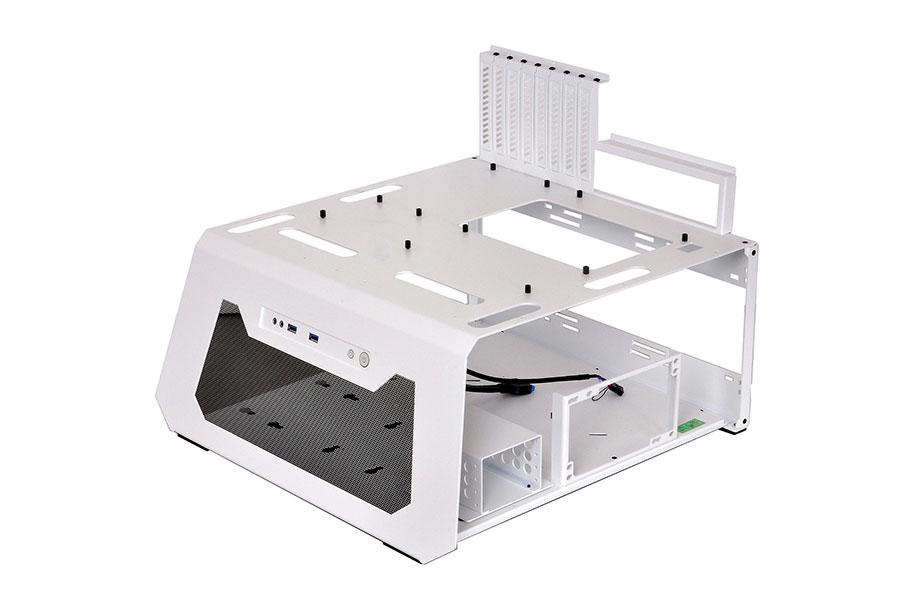

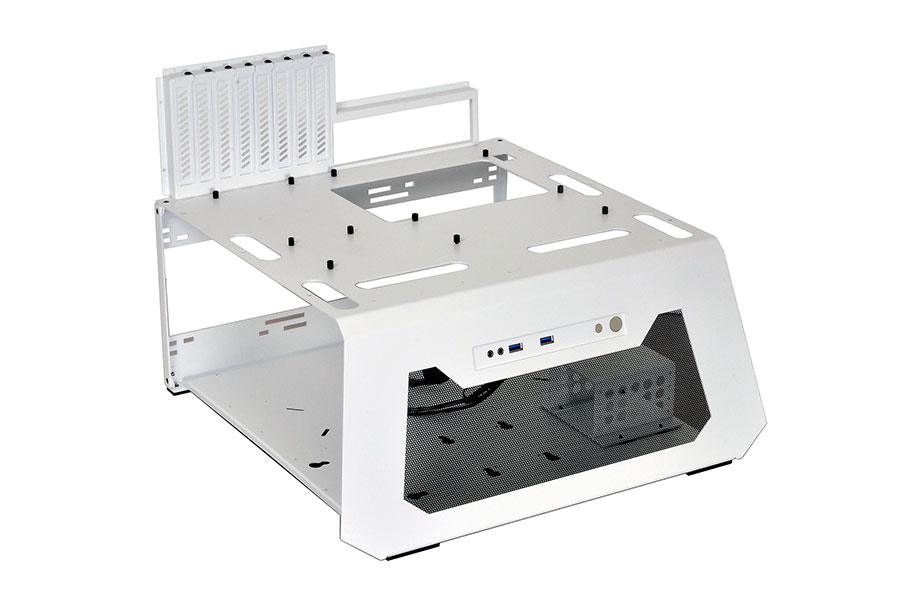

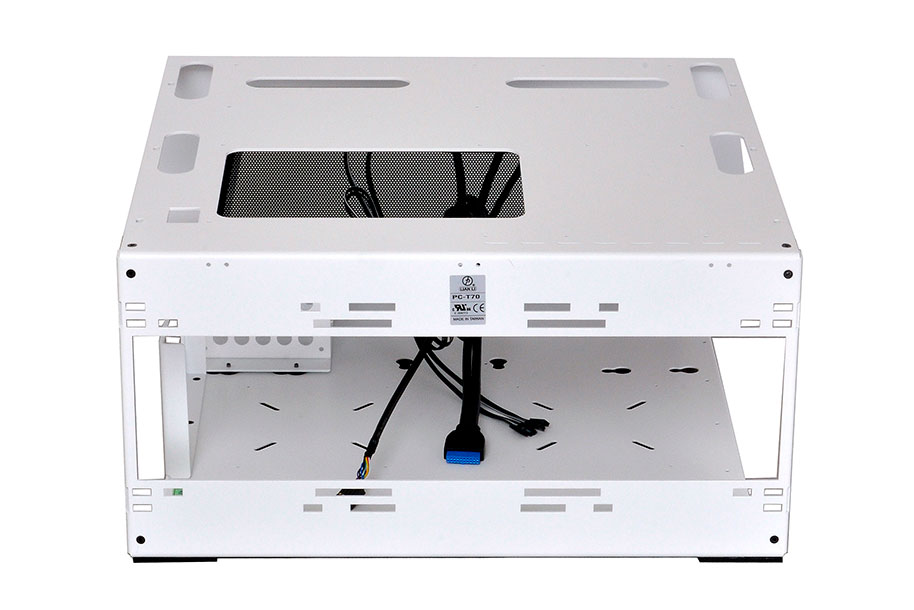

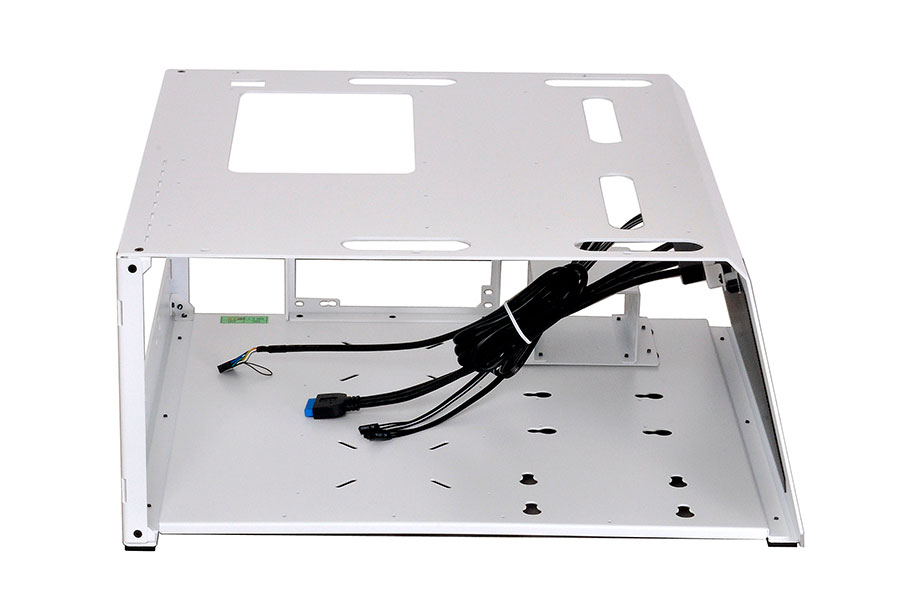

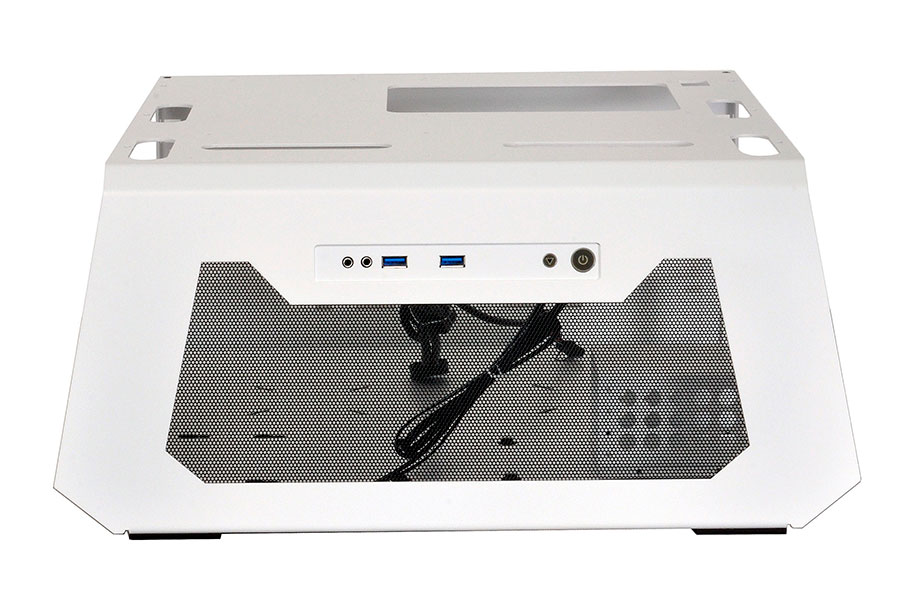

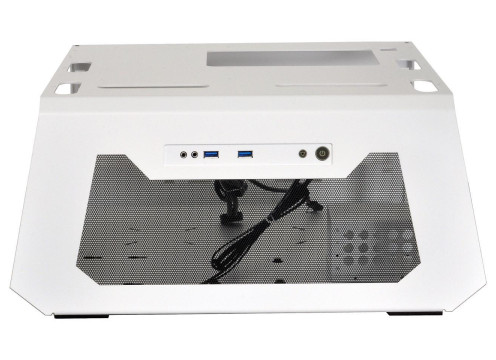

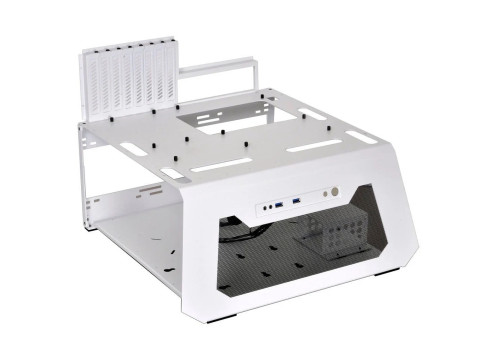

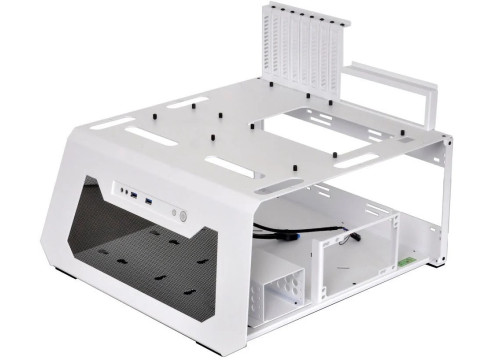

Lian Li PC-T70X Aluminum Test Bench White. Cabling Ease. Cables for devices or cooling can be fit through the many laser cut holes in the motherboard tray to achieve very clean builds.
Specification
Case Type
Test Bench
MB Compatability
ATX
\ Micro ATX
\ E-ATX
Power Supply
ATX (optional)
Hard Drive 3.5
1 (2)
Hard Drive 2.5
5 (1)
Expansion slots
8
Front Connections
USB 3.0
\ Earphone/Mic
Cooling
140mm fan x 2 or 120 mm fan x 3 (optional)
CPU Cooler Height (mm)
210
Dimensions
432mm x 316mm x 416mm
Information
The T60 Test Bench mounts Standard ATX & Micro-ATX motherboards, 5.25″ optical drives, 3.5″ and 2.5″ hard drives, and a standard ATX PS/2 power-supply unit. The open design makes it easy to switch components, mod, and service.
5.25″ Drive Bays
Two, standard, 5.25″ optical drives mount directly above the power-supply unit.
Removable HDD Cage
Three, 3.5¡¨ HDDs mount, using thumb-screws with rubber-suspension to prevent vibration.
Supports 2.5¡¨ HDDs
Aluminum mounts for two, 2.5″ HDDs, directly below the M/B tray, allow user to easily install and remove them, as desired.
Trestle For PCI Card Stability
A trestle can be easily set-up with thumb-screws, to give the back-end of the T60 Test Bench additional stability.
