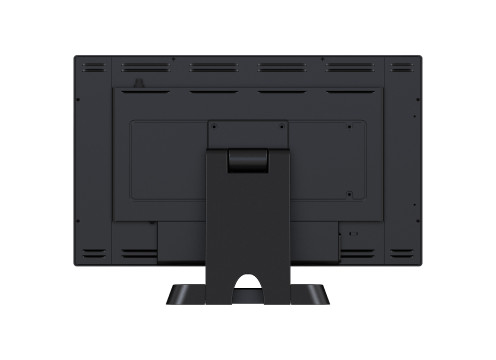

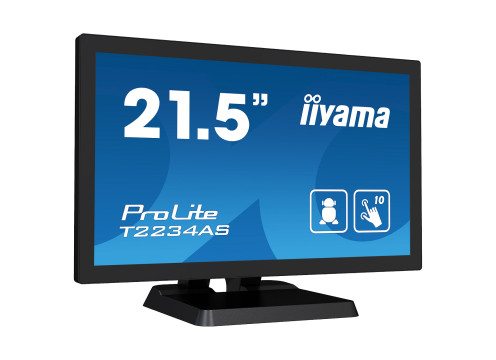

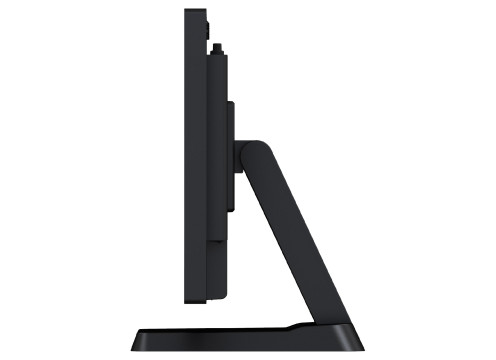

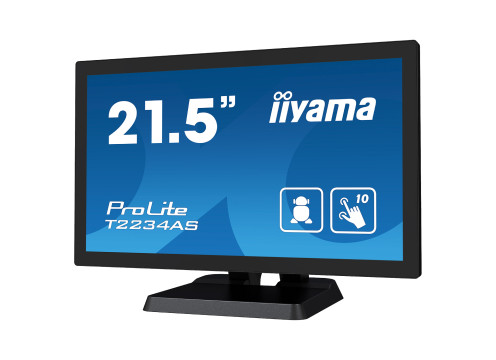

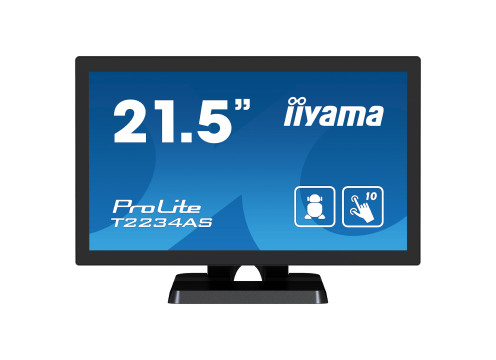

IIYAMA 21.5" ProLite IPS IP65 PCAP 10pt Touch Screen

P/N:

T2234AS-B1

Warranty:

3 Years - Pickup and return

Manufacturer:

IIYAMA 21.5" ProLite IPS IP65 PCAP 10pt Touch Screen T2234AS-B1 the all-in-one monitor solution for shops, retail or information desks. The HDMI output makes it easy to connect a second customer-facing display for dynamic content and advertising.
Specification
Information

Specification

Design

Edge to Edge Glass

Monitor Size

19" - 22"

Screen Size

21.5"

Display Resolution

Full HD

Panel Type

IPS

Monitor Ratio

16:9

Touch Technology

PCAP

Touch Points

10

Touch Method

Stylus
\ Finger
\ Glove

Non-stop Operating Time

24/7

Response Time, ms

8ms (GTG)

Monitor Brightness

350 cd/m2

Static Contrast

1:1000

Hardware info

CPU Rockchip RK3288, Quad-Core Cortex-A17 up to 1.8GHz | GPU Mail-T760 MP4 | Storage 16GB eMMC | Memory 2GB DDR3

Operation System

Android

Network Connections

Bluetooth 4
\ Wi-Fi 4 (802.11n)
\ LAN 1 Gigabit

Monitor Connections

HDMI
\ USB
\ Headphone
\ RS-232
\ LAN (RJ45)
\ SD Card

Monitor Features

IP65

Mechanical Movements

Tilt

Vesa Type, mm

100x100

Dimensions

W=517.5 H=351.5 D=219mm

Weight

6.6 kg

Information

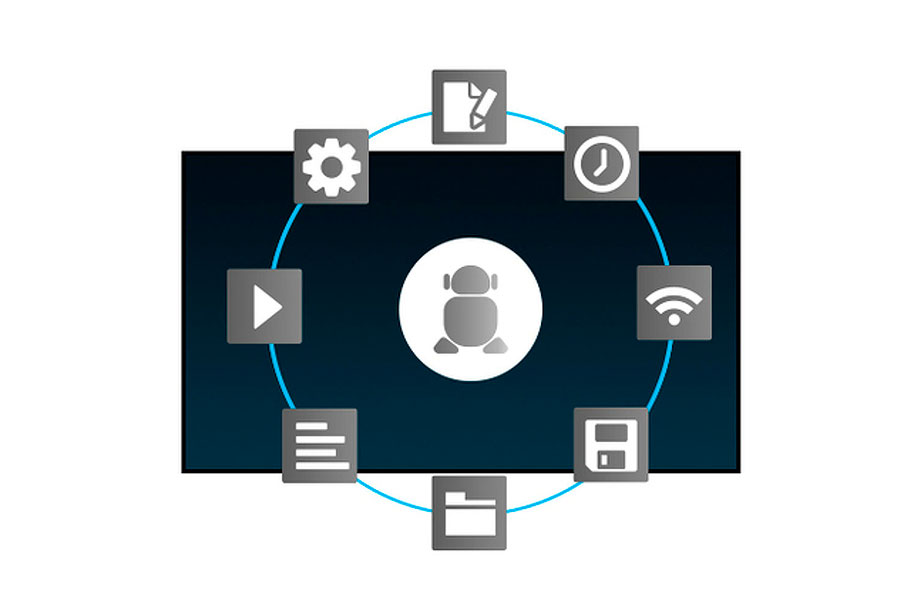

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

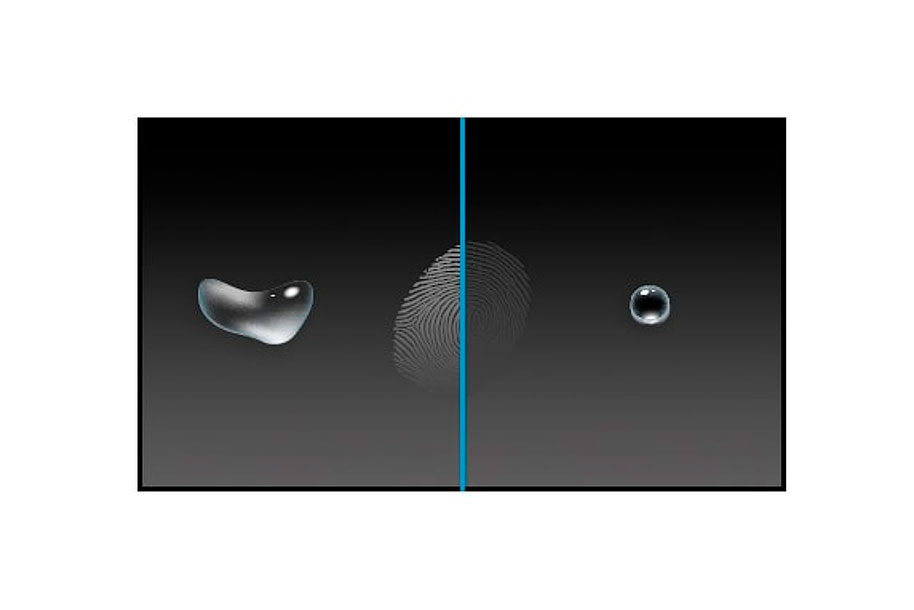

Anti-fingerprint coating

This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

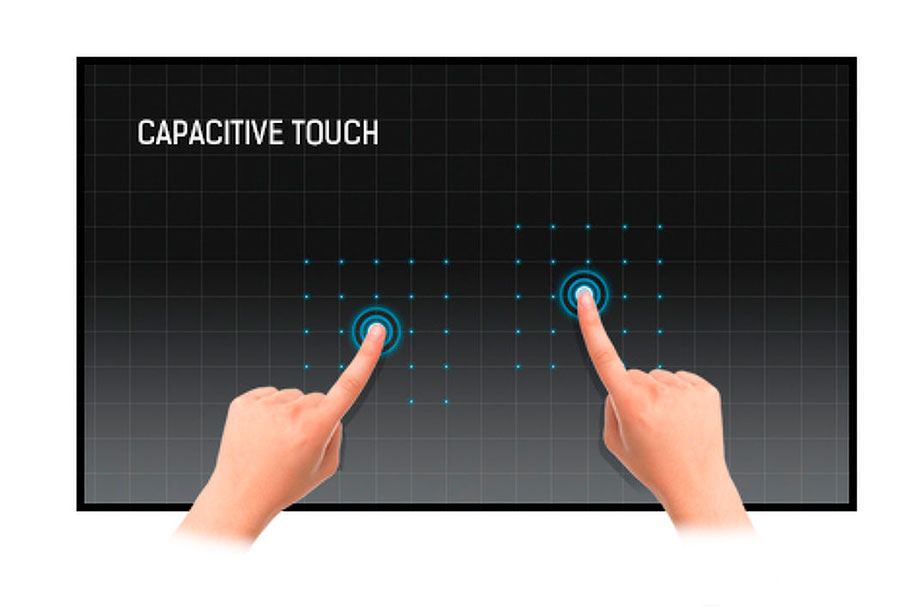

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

IP65

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
