Supermicro MB X12SPM-TF, 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, Intel C621A
מפרט
ערכת שבבים
Intel C621
תושבת מעבד
4189
סוג זכרון
DDR5
תצורת לוח
Micro ATX
חיבור גרפי
VGA
חיבורי תקשורת
LAN 10 Gigabit
חיבור USB קדמי
USB 2.0
\ USB 3.2
RAID
0,1,5,10
סלוטים DDR5
8
PCI-E x16
2
PCI-E x16 (x8) Slot
1xPCIe 4.0 x8 | 2xPCIe 4.0 x8 SimSAS connector
USB 3.2
5
USB 2.0
6
ממשק אחסון
SATA3
\ M.2 PCIe
חיבורי SATA3
10
חיבורי M.2 PCIe
1
חריצי הרחבה
Trusted Platform Module - TPM
\ PCIe 4.0 x16 slot
\ PCI Express x16 slot, running at x8
חיבור סיריאלי COM
יש
מידע

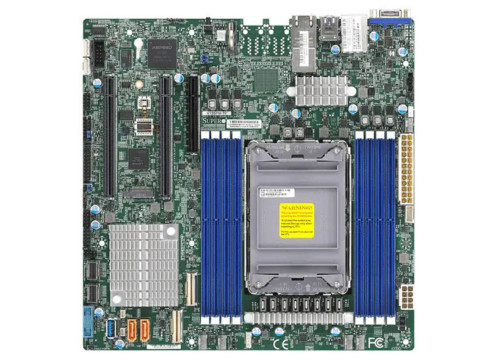

Supermicro MB X12SPM-TF
Key Features
3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP •
Intel® C621A •
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz •
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots •
4x NVMe port PCIe 4.0 x4 via SlimSAS connector •
1xPCIe 4.0 x8, 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 SlimSAS connectors •
M.2 Interface: 1 SATA/PCIe 3.0 x4 •
M.2 Form Factor: 2280, 22110 •
M.2 Key: M-Key •
Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 •
Dual LAN with 10GBase-T with Intel® X550 •
Supports 12V DC power input •
5xUSB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers) •
