Gigabyte GeForce RTX 4060 Ti (DLSS 3) GV-N406TGAMING OC-8GD

מק"ט:

N406TGAMINGOC8GD

אחריות:

3 שנים

יצרן:

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing. 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering. 3rd Generation RT Cores: Up to 2X ray tracing performance. Powered by GeForce RTX™ 4060 Ti (8GB). Integrated with 8GB GDDR6 128bit memory interface. WINDFORCE cooling system. RGB Fusion. Dual BIOS. Protection metal back plate.
מפרט
מידע

מפרט

מעבד גרפי

NVIDIA GeForce RTX 4060 Ti

מהירות ליבה

2580 MHz

מהירות זכרון

18 Gbps

גודל זכרון כרטיס מסך

8GB

סוג זכרון גרפי

GDDR6

רוחב פס זכרון

128bit

כמות מסכים מקסימלית

רזולוציה דיגיטלית מקסימלית

7680 x 4320

מימדים

L=281 W=117 H=53 mm

גרסת DirectX

12 Ultimate

גרסת OpenGL

4.6

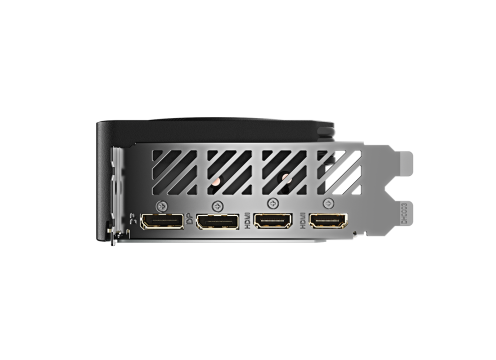

חיבור גרפי

HDMI
\ DisplayPort

ממשק כרטיס מסך

PCI-E 4.0 x 16

Recommended PSU

500W with Power Connectors 8 pin*1

עיצוב תרמי

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

אריזה

Retail - קופסה

מידע

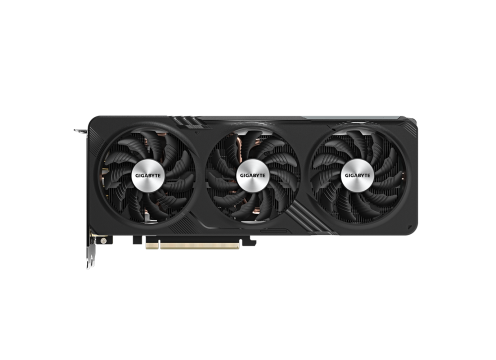

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning,

4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling,

which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off

when the GPU is in a low load or low power game.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU.

The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect

or synchronize with other devices in GIGABYTE CONTROL CENTER.
