Gigabyte PSU 850W (ATX3.0) Gold 80+ Modular
מק"ט:
GP-UD850GM-PG5
אחריות:
10 שנים
יצרן:
Ultra Durable:
- Main Japanese capacitors;
- Enhanced thermal solution;
- 120mm smart hydraulic bearing (HYB) fan;
- OVP/OPP/SCP/UVP/OCP/OTP protection.
Support PCIe Gen 5.0 graphics card.
High-quality native 16-pin cable supports 600W output.
80 PLUS Gold certified.
Fully modular design.
Compact design.
מפרט
קבוצת הספק
650W - 1100W
הספק
850W
תצורת ספק
ATX PS/2
נצילות
80+ Gold
PFC
Active PFC
כמות מסילות 12 וולט
2
זרם מקסימלי על מסילות 12 וולט
70.8 A
חיבורי SATA
8
Molex 4 pin
3
PCI-E Connectors 8 pin
4
חיבורי 12VHPWR
1
EPS 12V 8 pin
2
אריזה
Retail - קופסה
מידע
| Support PCIe Gen 5.0 graphics card The UD850GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card. |
 |
 |
ULTRA DURABLE Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time. |
| HIGH QUALITY JAPANESE CAPACITORS The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability. |
 |
 |
ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. |
| 120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time. |
 |
|

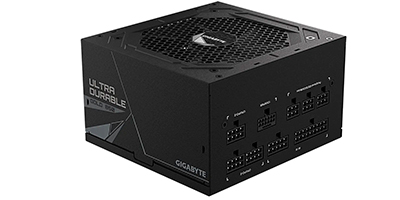

FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. |
| 80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. |
|
