|40 Gb/s Intel® Thunderbolt™ 4 Certified Add-in Card

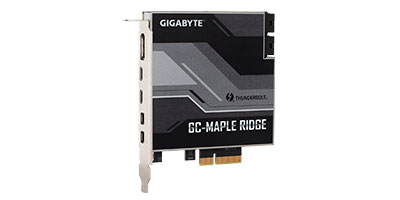

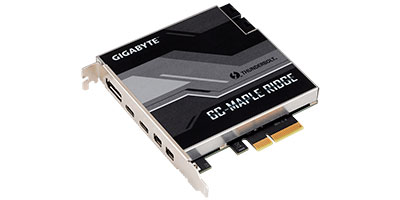

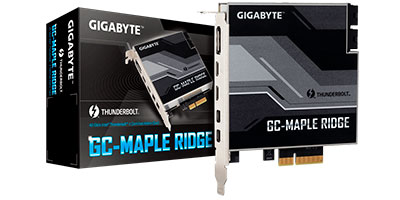

The GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 4 connectivity without having to upgrade to a whole new system.
|Dual Thunderbolt™ 4 – The fastest 40Gb/s single-wire connection
Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 4 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 5 Thunderbolt devices without an additional hub or switch.
|Daisy-chain Multiple Devices
Support for DisplayPort 1.4 makes Thunderbolt™ 4 a must have for any enthusiast. GIGABYTE GC-MAPLE RIDGE support two displays in 4K* resolution at 60 FPS. In addition, Thunderbolt™ 4 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C™ ports.
|Intel® Thunderbolt™ 4 Certified add-in card
Intel® JHL8540 Thunderbolt™ 4 controller
Dual Thunderbolt™ 4 Ports (USB Type-C™)
Max Bandwidth 40 Gb/s
DisplayPort 1.4 Capable with 4K Video Throughout
Daisy-chain up to 10 Devices (5 devices per port)
Support PD3.0 standard (up to 97W)
