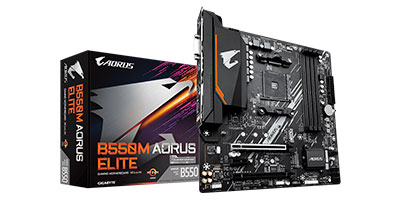

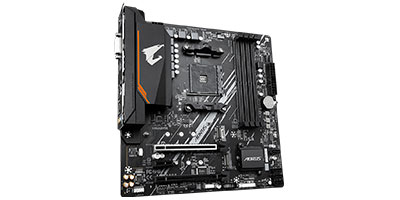

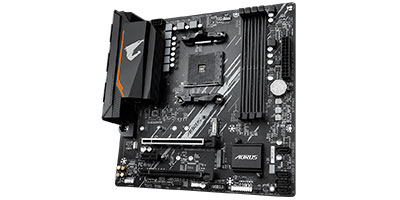

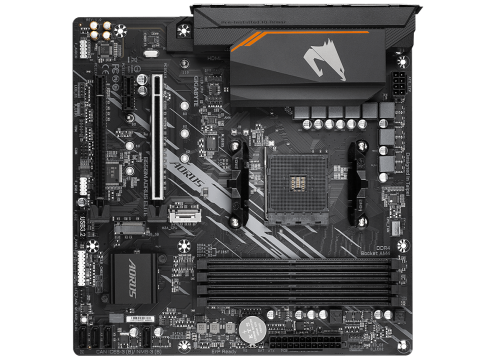

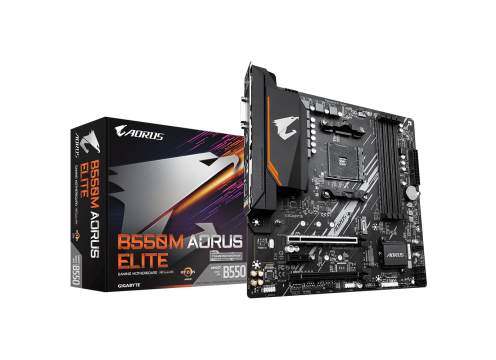

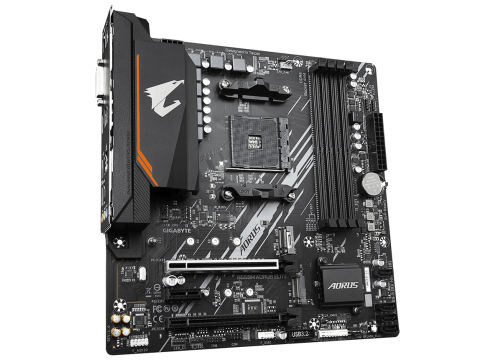

Gigabyte B550M AORUS ELITE

מק"ט:

GB550MAORUSE

אחריות:

3 שנים

יצרן:

Supports AMD Ryzen™ 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra Durable™ PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GIGABYTE Exclusive 8118 Gaming GbE LAN Rear HDMI & DVI Support RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design
מפרט
מידע

מפרט

ערכת שבבים

AMD B550

תושבת מעבד

AM4

סוג זכרון

DDR4

תצורת לוח

Micro ATX

כרטיס מסך משולב

AMD APU

חיבור גרפי

DVI
\ HDMI

חיבורי תקשורת

LAN 1 Gigabit

חיבור USB קדמי

USB 2.0
\ USB 3.2

RAID

0,1,10

כרטיס קול משולב

3 port

סלוטים DDR4

PCI-E x16

PCI-E x16 (x4) Slot

PCI-E x1

USB 3.2

USB 2.0

ממשק אחסון

SATA3
\ M.2 PCIe
\ M.2 SATA

חיבורי SATA3

חיבורי M.2 PCIe

2 (SATA and PCIex2 SSDs)

חריצי הרחבה

Trusted Platform Module - TPM

חיבור סיריאלי COM

אופציונלי

אריזה

Retail - קופסה

מידע

Supports AMD Ryzen™ 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
GIGABYTE Exclusive 8118 Gaming GbE LAN

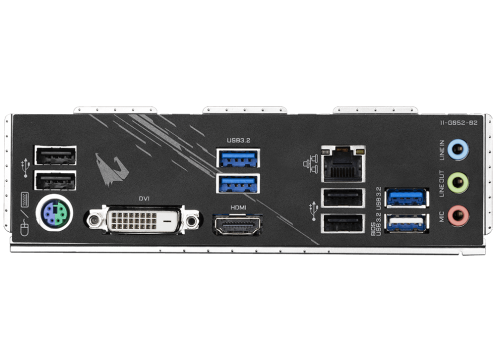

Rear HDMI & DVI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
