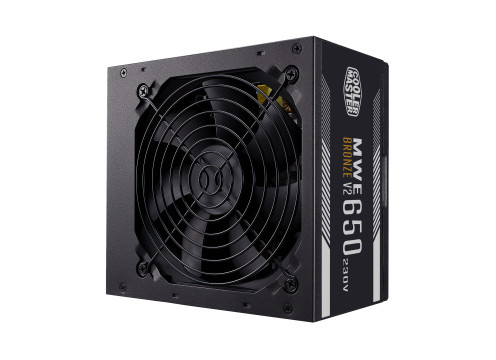

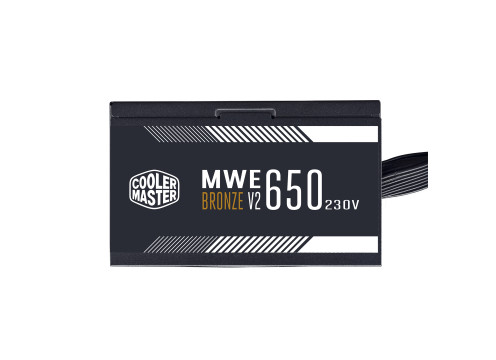

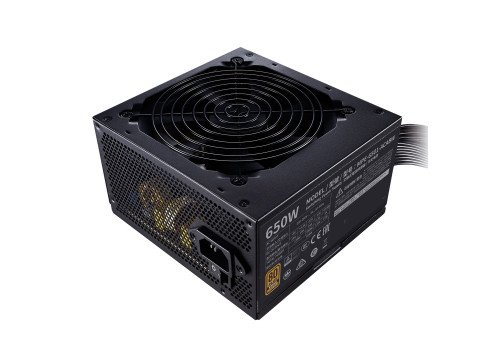

CoolerMaster MWE 650W 230V-V2 80+ Bronze
מק"ט:
MPE-6501-ACABW-BWO
אחריות:
5 שנים
יצרן:
80 PLUS BRONZE CERTIFIED 230V POWER SUPPLY UNIT DC-to-DC + LLC Circuit Design High Temperature Resistance Peak Power Tolerance 80 PLUS Bronze 230V EU Certified Durable, Reliable, and Safe
מוצרים מומלצים
מפרט
קבוצת הספק
650W - 1100W
הספק
650W
תצורת ספק
ATX PS/2
נצילות
80+ Bronze
PFC
Active PFC
כמות מסילות 12 וולט
1
זרם מקסימלי על מסילות 12 וולט
54 A
חיבורי SATA
6
Molex 4 pin
3
PCI-E Connectors 8 pin
4
EPS 12V 8 pin
2
אריזה
Retail - קופסה
הערות
יש לשים לב: ספק כח זה מגיע ללא כבל חשמל. יש לרכוש כבל חשמל “קומקום“ בנפרד כדי לחבר אותו לשקע החשמל הביתי.
מידע
| 80 Plus Bronze Certified It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable. |
 |
 |
120mm HDB Fan The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze's solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system's temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required. |
| Single +12V Rail Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system's overall performance. That's why the MWE Bronze only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections. |
 |
 |

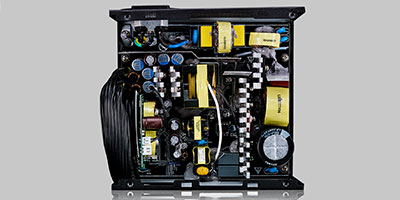

DC-TO-DC Circuit Design Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE Bronze's DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected components. |

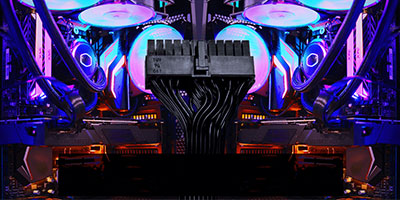

| Flat Black Cables For many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow. |
 |
