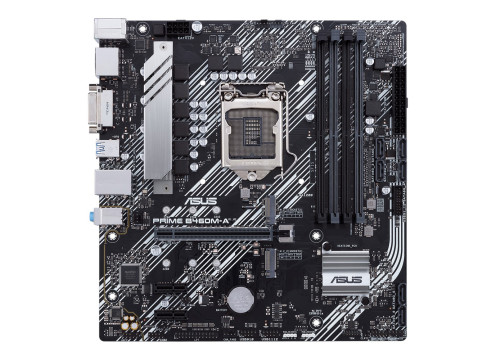

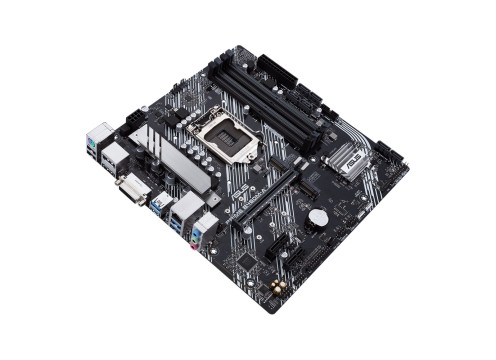

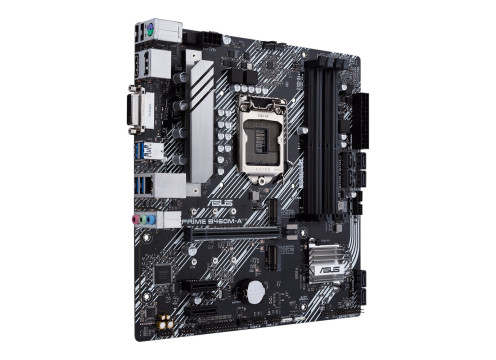

Asus PRIME B460M-A

P/N:

90MB13E0-M0EAY0

Warranty:

3 Years

Manufacturer:

Specification
Information

Specification

Chipset

Intel B460

Socket

1200

Memory Type

DDR4

MB Form Factor

Micro ATX

Graphics O.B.

Graphics On Board

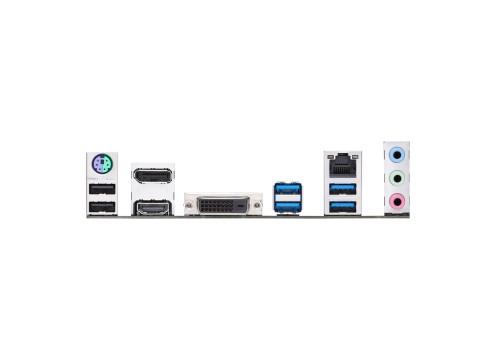

Graphics Interface

DVI
\ HDMI
\ DisplayPort

Network Connections

LAN 1 Gigabit

Front USB Connector

USB 2.0
\ USB 3.2

RAID

0,1,5,10

Audio O.B

3 port

DDR4 Slots

PCI-E x16

PCI-E x1

USB 3.2

USB 2.0

Storage Interface

SATA3
\ M.2 PCIe
\ M.2 SATA

SATA3 Ports

M.2 PCIe Connectors

1 + 1 ( SATA & PCIE mode)

MB Expansion Slots

Trusted Platform Module (TPM)

COM Port

Optional

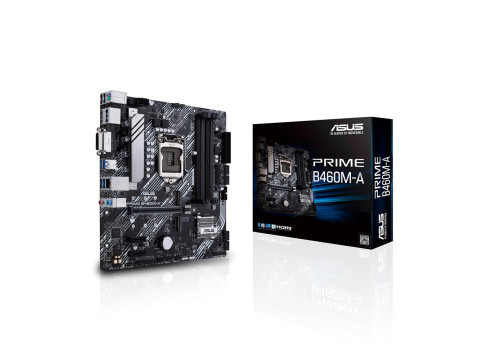

Package

Retail

Remarks

1 x LPT header

Information

Intel® B460 (LGA 1200) mATX motherboard with Aura Sync RGB header, Dual M.2, DDR4 2933MHz, HDMI, DisplayPort, USB 3.2 Gen 1 ports, Intel® Optane memory ready, SATA 6 Gbps

  • Intel ® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
  • Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
  • 5X Protection III: Multiple hardware safeguards for all-round protection.
  • Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds
  • Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
