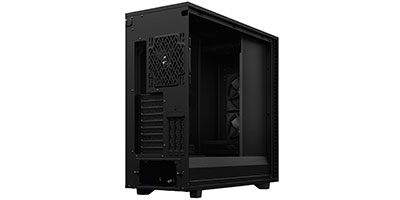

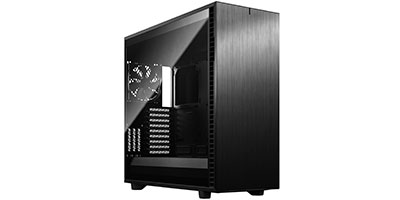

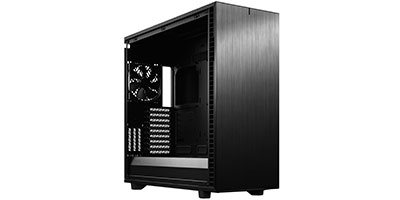

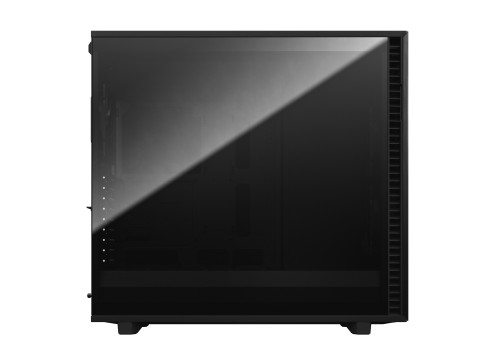

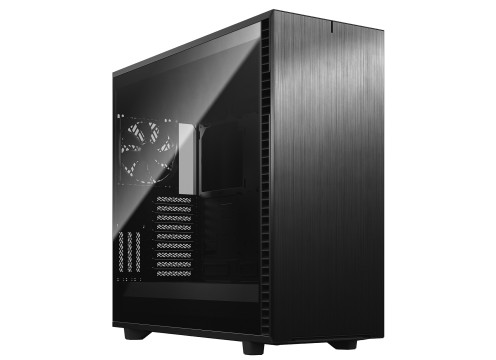

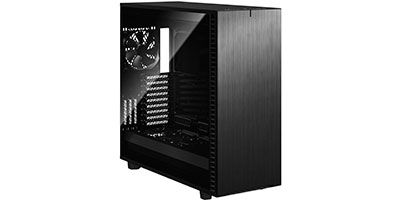

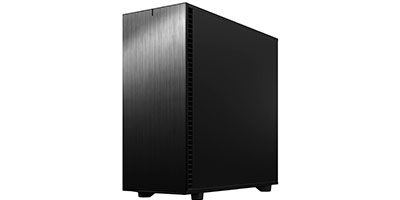

מארז מחשב Fractal Design Define 7 XL Dark

מק"ט:

FD-C-DEF7X-03

אחריות:

שנה אחת
מפרט
מידע

מפרט

סוג מארז

Full Tower

תאימות ללוח אם

ATX
\ Micro ATX
\ E-ATX
\ Mini ITX

ספק כח

ATX (not included)

Bays 5.25

Hard Drive 3.5

6 + 2 included, 18 positions total

Hard Drive 2.5

2 included, 5 positions total

Expansion slots

9+3

יציאות קדמיות

USB 2.0
\ USB 3.0
\ Earphone/Mic
\ USB Type-C

עיצוב תרמי

Front fan 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included) Rear fan 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)

גובה מקסימלי קירור למעבד (ממ)

180

מידות

604 x 240 x 566 mm

פילטר אבק

שליף

מידע

Plenty of room for massive builds
Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
Ventilated PSU shroud with two-part removable cover
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities
Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)

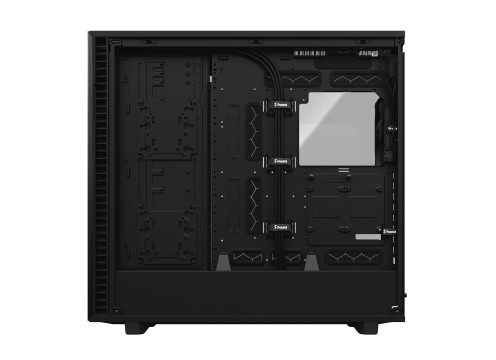

Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
Sturdy new HDD cage design with vibration damped trays
13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
Airflow and cooling
Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
USB Type-C
USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
SSI-EEB
Easily holds your SSI-EEB motherboard
Moduvent

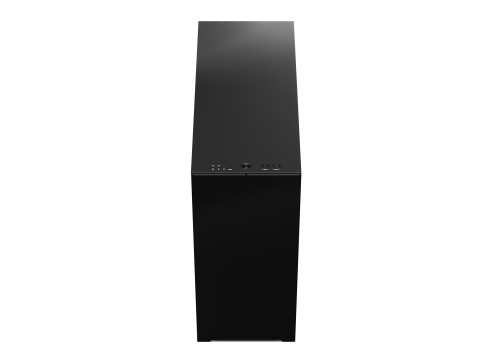

Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
