Node 304 accommodates up to six hard drives. Unused mounting brackets can be removed in favor of long graphic cards, additional airflow or more space for organizing cables. Additionally, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes and two front USB 3.0 ports.
מפרט
סוג מארז
HTPC
תאימות ללוח אם
Mini ITX
ספק כח
ATX PSUs, up to 160mm in length (To fit in combination with a long graphics card, PSUs with modular connectors on the back typically need to be shorter than 160 mm)
Hard Drive 3.5
6
Expansion slots
2
יציאות קדמיות
USB 3.0
\ Earphone/Mic
עיצוב תרמי
2 - Front mounted 92mm Silent Series R2 hydraulic bearing fans, 1300 RPM speed (compatible with 80mm fans) – included 1 - Rear mounted 140mm Silent Series R2 hydraulic bearing fan, 1000 RPM speed (compatible with 120mm fans) – included Removable air fil
גובה מקסימלי קירור למעבד (ממ)
160
מידות
W=250 H=210 D=374mm
צבע
שחור
הערות
Graphics cards, up to 310mm in length, when 2 HDD slots (1 HDD hanging bracket total) are removed (Graphics cards longer than 170 mm will conflict with PSUs longer than 160mm)
מידע
| The Node 304 accommodates up to six hard drives. Unused mounting brackets can be removed in favor of long graphic cards, additional airflow or more space for organizing cables. Additionally, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes and two front USB 3.0 ports. |  |
 |
Compact, modular interior in a minimalistic design with an elegant aluminum front panel Unique new modular mounting system that accommodates up to 6 hard drives Accommodates tower CPU coolers and single-fan water cooling systems Filtered air intakes ensure a dust-free environment for internal components |
| Three Silent Series R2 hydraulic bearing fans and fan-controller included Excellent cooling for all components Accommodates ATX power supplies USB 3.0 for fast file transfers |
 |
 |

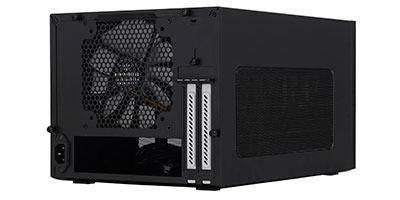

3x Silent fans Three Silent Series R2 hydraulic bearing fans included |
| Dust-free filters Filtered air intakes ensure a dust-free environment for internal components |
 |
 |

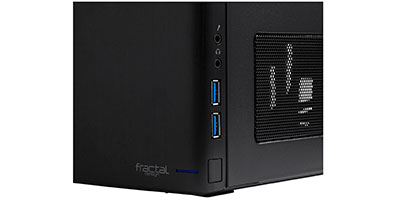

USB 3.0 Connectors USB 3.0 for fast file transfers |
