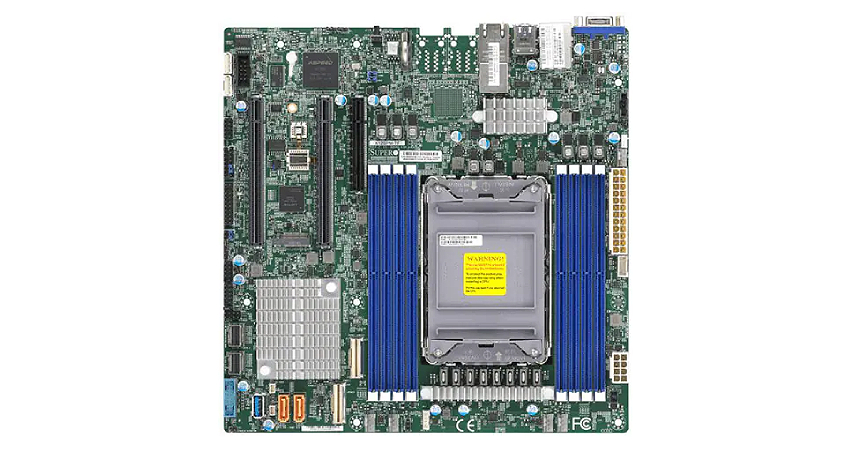

Supermicro MB X12SPM-TF, 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, Intel C621A
מפרט
ערכת שבבים
Intel C621
תושבת מעבד
4189
סוג זכרון
DDR4 ECC REG
\ DDR4 ECC REG 3DS
תצורת לוח
Micro ATX
חיבור גרפי
VGA
חיבורי תקשורת
LAN 10 Gigabit
חיבור USB קדמי
USB 2.0
\ USB 3.2
RAID
0,1,5,10
סלוטים DDR5
8
PCI-E x16
2
PCI-E x16 (x8) Slot
1xPCIe 4.0 x8 | 2xPCIe 4.0 x8 SimSAS connector
USB 3.2
5
USB 2.0
6
ממשק אחסון
SATA3
\ M.2 PCIe
חיבורי SATA3
10
חיבורי M.2 PCIe
1
חריצי הרחבה
Trusted Platform Module (TPM)
\ PCIe 4.0 x16
\ PCIe 4.0 x16, mode x8
חיבור סיריאלי COM
יש
מידע
Supermicro MB X12SPM-TF
Key Features
3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP •
Intel® C621A •
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz •
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots •
4x NVMe port PCIe 4.0 x4 via SlimSAS connector •
1xPCIe 4.0 x8, 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 SlimSAS connectors •
M.2 Interface: 1 SATA/PCIe 3.0 x4 •
M.2 Form Factor: 2280, 22110 •
M.2 Key: M-Key •
Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 •
Dual LAN with 10GBase-T with Intel® X550 •
Supports 12V DC power input •
5xUSB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers) •
