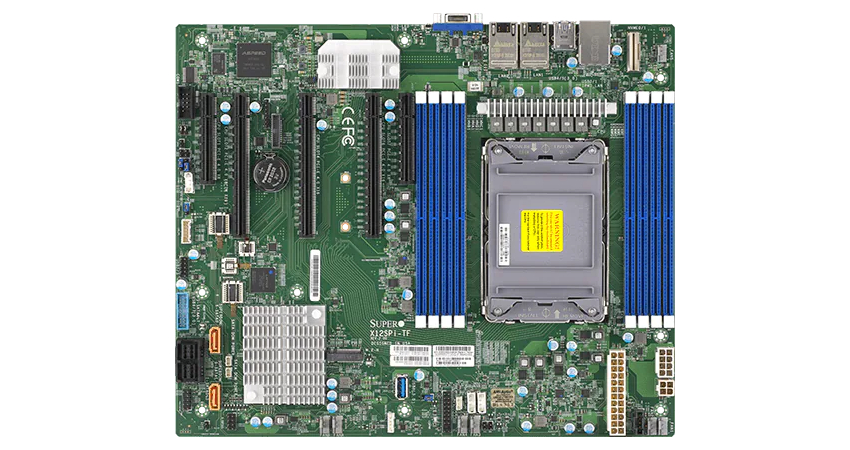

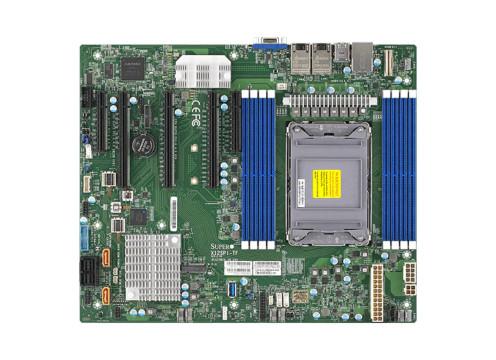

Supermicro MB X12SPi-TF
P/N:
X12SPI-TF
Warranty:
3 Years
Manufacturer:
Supermicro X12SPi-TF, 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, Intel C621A
Specification
Chipset
Intel C621
Socket
4189
Memory Type
DDR4 ECC REG
\ DDR4 ECC REG 3DS
MB Form Factor
ATX
Graphics Interface
VGA
Network Connections
LAN 1 Gigabit
\ LAN 10 Gigabit
Front USB Connector
USB 2.0
\ USB 3.2
RAID
0,1,5,10
DDR5 Slots
8
PCI-E x16
2+1
PCI-E x16 (x8) Slot
2
USB 3.2
5
USB 2.0
4
Storage Interface
SATA3
\ M.2 PCIe
SATA3 Ports
10
M.2 PCIe Connectors
1
MB Expansion Slots
Trusted Platform Module (TPM)
\ PCIe 4.0 x16
\ PCIe 4.0 x16, mode x8
\ PCIe 4.0 x8
COM Port
Optional
Information
Supermicro X12SPi-TF
Key Features
• 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
• Intel® C621A
• Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB LRDIMM, DDR4-3200MHz
• Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
• 2 PCIe 4.0 x16, 2 PCIe 4.0 x8, 1 PCIe 4.0 x8 (in x16 slot), 1 PCIe 4.0 NVMe x8 Internal Port(s)
• M.2 Interface: 1 SATA/PCIe 3.0 x4
• M.2 Form Factor: 2280/22110
• M.2 Key: M-Key
• Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Dual LAN with 10GBase-T with Intel® X550
