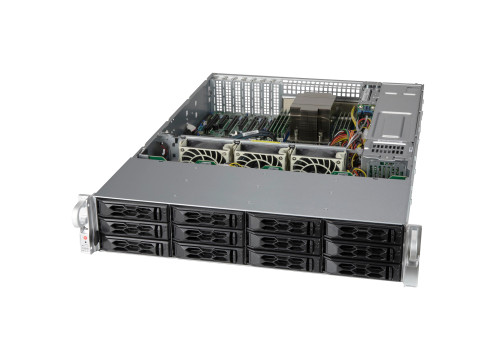

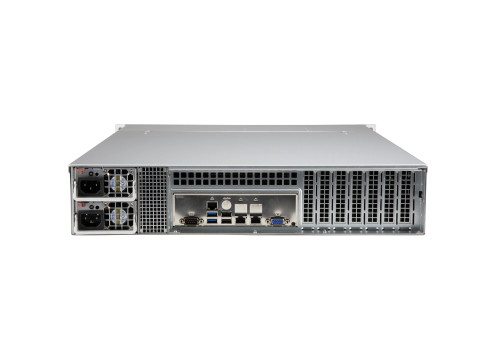

SuperMicro 2U Chassis 920W LA26AC12-R920LP1

מק"ט:

CSE-LA26AC12-R920LP1

אחריות:

3 שנים

יצרן:

SuperMicro 2U Chassis 920W LA26AC12-R920LP1, 2U chassis support max. motherboard size - ATX 12" x10", E-ATX 12" x13", EE-ATX 13" x13.68"
מפרט
מידע

מפרט

סוג מארז

2U

תאימות ללוח אם

ATX
\ E-ATX
\ EE-ATX

ספק כח

920W 1U Redundant Power Supply (80+ Platinum Certified)

Hard Drive 3.5

12x3.5" (tool-less) or 2.5" (screw) Hot-Wwap SAS3/SATA Drive Bay With SES3

Hard Drive 2.5

Optional Rear 2x2.5" Hot-Swap Drive Bay Kit

Expansion slots

עיצוב תרמי

High-Performance PWM Fans 3x80mm

גובה מקסימלי קירור למעבד (ממ)

80

מידות

H=89 W=437 D=647mm

Rackmount

כן

מידע

SuperMicro SuperChassis LA26AC12-R920LP1

"2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68.

Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3

Optional rear 2x 2.5" hot-swap drive bay kit

12port LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Device

920W 1U Redundant Power Supply

7x low-profile expansion slot(s)

3x 8cm high-performance PWM fan(s)

Support service tag for system information

Processor Support: Dual and Single Intel® and AMD processors
