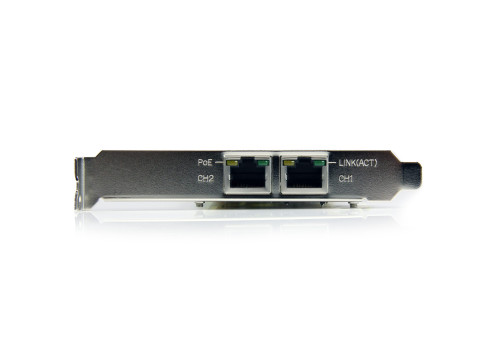

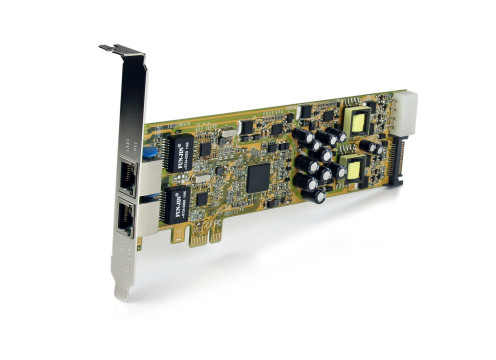

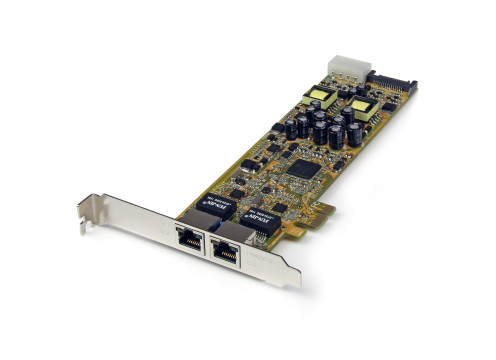

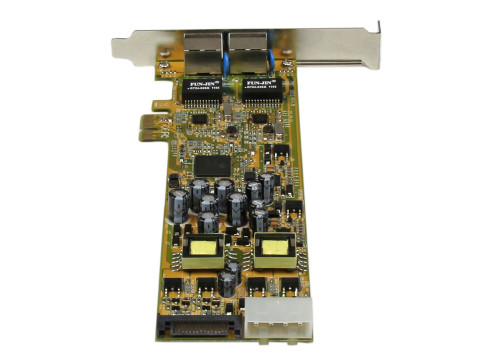

StarTech Dual Port Gigabit POE Eth Card PCI-E

StarTech Dual Port Gigabit POE Eth Card PCI-E

מק"ט:

ST2000PEXPSE

אחריות:

שנה במעבדה

יצרן:

StarTech

קישור לאתר יצרן

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.

הצעת מחיר

מפרט

מידע

מפרט

מהירות מבואות

1 Gbit

מספר יציאות

סוג חיבור - ממשק

PCI-E x1

מידע

Dual 10/100/1000 Mbps PoE RJ45 ports
Supports IEEE 802.3at (Type 1, 2) Power over Ethernet standard
Power Sourcing Equipment (PSE) design, provides data and up to 25.5W of power on each port
Built-in SATA and LP4 Molex power connector
Unique surge protection design helps prevent system damage in the event of lightning strikes
Jumbo Frame support
On-chip 48 KB Big Transmit/Receive Buffer Support
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
Crossover Detection & Auto-Correction (Auto MDIX)
Includes full and low profile/half-height installation brackets

This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.

Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
