MAXSUN Terminator Z890-A WIFI
P/N:
MS-TER-Z890-A-WIFI
Warranty:
3 Years
Manufacturer:
MAXSUN Terminator Z890-A WIFI, Intel® LGA1851 socket, supports Core™ Ultra processors. MS-TER-Z890-A-WIFI
Specification
Chipset
Intel Z890
Socket
1851
Memory Type
DDR5
MB Form Factor
ATX
Graphics Interface
HDMI
\ DisplayPort
Network Connections
Wi-Fi 6/6E (802.11ax)
\ LAN 2.5 Gigabit
\ Bluetooth 5.2
Front USB Connector
USB 2.0
\ USB 3.2
\ USB Type-C
Audio O.B
5 port + S/PDIF
Wirelless Adapter
Yes
DDR5 Slots
4
PCI-E x16
1
PCI-E x16 (x4) Slot
1
PCI-E x1
2
USB Type-C
2
USB 3.2
7
USB 2.0
3
Storage Interface
SATA3
\ M.2 PCIe
SATA3 Ports
4
M.2 PCIe Connectors
4
MB Expansion Slots
PCIe 4.0 x16, mode x4
\ PCIe 5.0 x16
\ PCIe 4.0 x1
COM Port
Optional
Information

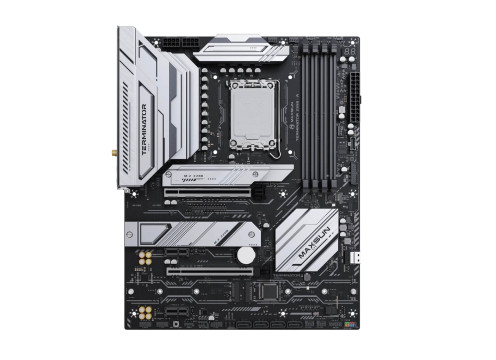

MAXSUN Terminator Z890-A WIFI
Form Factor: ATX (305mm x 245mm).
CPU: Intel® LGA1851 socket, supports Core™ Ultra processors.
Chipset: Intel® Z890.
Memory: 4 x DDR5 slots, up to 256GB, 8600MHz (OC).
PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1.
Storage: 4 x M.2 (up to PCIe 5.0 x4), 4 x SATA 6Gb/s.
Networking: 2.5Gb Ethernet, Intel® AX201 Wi-Fi 6, Bluetooth® 5.2.

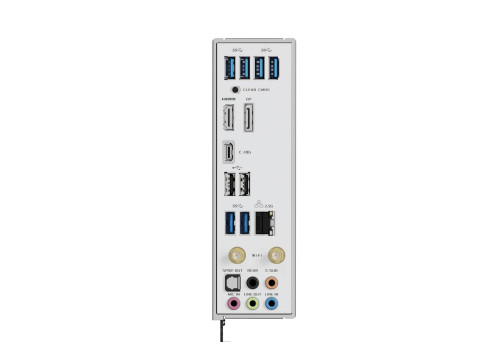

USB: 14 ports (including USB-C 40Gbps, USB 3.2, USB 2.0).
Audio: Realtek ALC897, 6 audio jacks.
Display: DisplayPort 1.4, HDMI 2.0, supports 4K@60Hz.
Cooling & Power: Multiple fan connectors, 24-pin ATX, dual 8-pin +12V.
Extras: RGB lighting, Resizable Bar, CLR_CMOS button.
OS: Supports Windows® 10/11 64-bit
