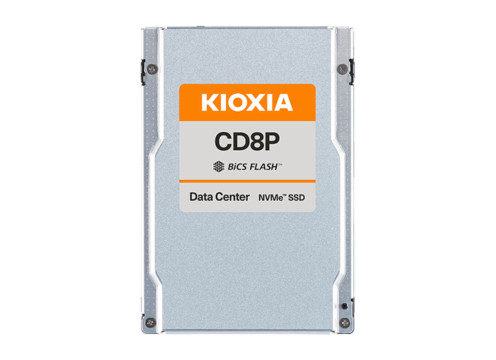

KIOXIA CD8P-R 15.36TB SSD 2.5" PCIe5.0 NVMe2.0 15mm SIE

P/N:

KCD8XPUG15T3

Warranty:

5 Years

Manufacturer:

KIOXIA CD8P-R 15.36TB SSD 2.5" PCIe5.0 NVMe2.0 15mm SIE. KCD8XPUG15T3
Specification
Information

Specification

Disk Type

2.5"

Disk Capacity

15TB

Storage Memory

TLC

Read Speed

12000 MB/s

Write Speed

5500 MB/s

Information

KIOXIA CD8P-R 15.36TB SSD

KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications,

including big data/IoT, online transaction processing and virtualization.

Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write),

and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series).

Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB,

making them well-suited for hyperscale data center applications.

PCIe® 5.0, NVMe™ 2.0 specification compliant

Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)

Form factor: 2.5-inch, 15 mm thickness

Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory

Single-port design, optimized for data center class workloads

Consistent performance and reliability for demanding 24x7 environments

Designed for high-density storage deployments

Power loss protection (PLP) and end-to-end data correction

Security options: SIE, SED
