PCIe5.0 x16 to 2xMCIO X8 Adapter

מק"ט:

CST-PM2E

אחריות:

שנתיים

יצרן:

PCIe5.0 x16 to 2xMCIO X8 Adapter. CST-PM2E
מפרט
מידע

מפרט

ממשק כרטיס הרחבה

PCI-E x16

יציאות כרטיס הרחבה

MCIO

מידע

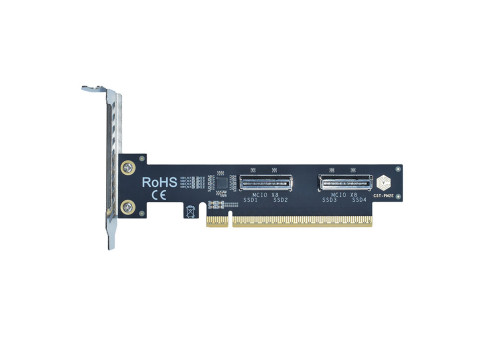

MCIO adapter CST-PM2E

By converting 2x MCIO X8 through the PCIe 5.0 X16 slot on the PC.  At the same time, two MCIO X8 data cables are added to connect up to four U.2 NVMe SSDS.

Connector1: 1 x PCIe5.0 x16

Connector2: 2 x MCIO X8

Data transfer rate: 32GT/s(PCIe GEN5)

Built-in  two MCIO X8 connector

Support for PCI Express basic specification 5.0, backward compatible with 4.0 and 3.0

Supports NVM Express (NVMe)

Bootable, ex UEFI version 2.3.1

Operating temperature: -40℃ - 85℃

System requirements

Linux Kernel 5.11 or above

Windows 8.1/8.1-64/10/10-64/11

Windows Server 2019

PC with one free PCI Express x8 / x16 slot



Note: You need to set up signal splitting on the motherboard BIOS (x4x4x4x4), otherwise only one hard drive can be recognized
