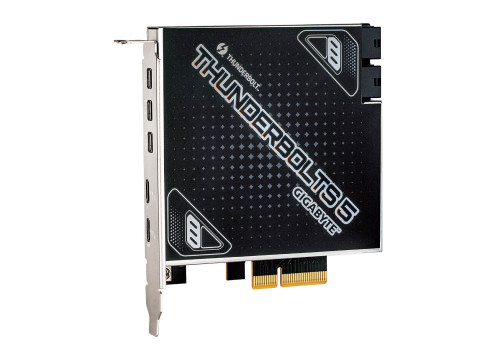

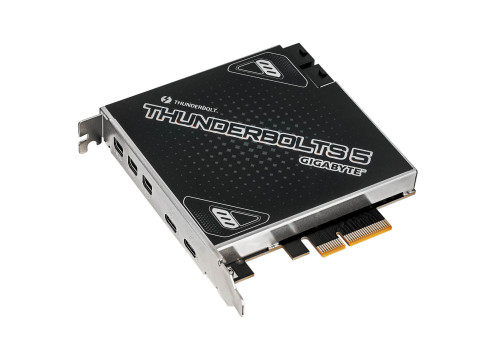

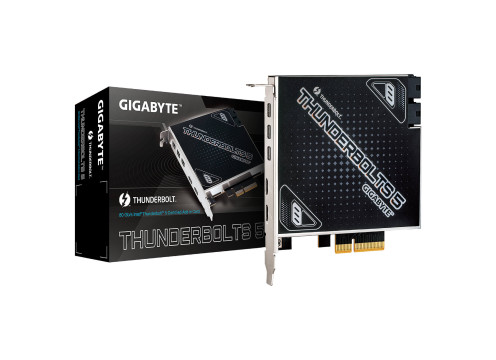

Gigabyte THUNDERBOLTS 5 PCIe4.0x4 Add-In Card

P/N:

THUNDERBOLTS5

Warranty:

1 Year

Manufacturer:

Gigabyte THUNDERBOLTS 5 PCIe4.0x4 Add-In Card, offers an easy way to upgrade GIGABYTE Thunderbolt ready motherboards with the new and faster Thunderbolt 5 connectivity without having to upgrade to a whole new system. THUNDERBOLTS5
Specification
Information

Specification

Addon Card Interface

PCI-E x4

Addon Card Ports

USB Type-C
\ DisplayPort Mini

Information

Gigabyte THUNDERBOLTS 5

The THUNDERBOLTS 5 offers an easy way to upgrade GIGABYTE Thunderbolt ready motherboards

with the new and faster Thunderbolt 5 connectivity without having to upgrade to a whole new system.

Delivers speeds of up to 120Gb/s, that's 3 times faster than Thunderbolt 4.

The powerful capabilities of Thunderbolt 5 not only meet the needs of general users but also satisfy the gaming enthusiasts and video creators.​

Supports USB4, PCIe Gen 4, DisplayPort 2.1 and Power Delivery 3.1,

in addition, Thunderbolt™ 5 offers the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C™ ports.

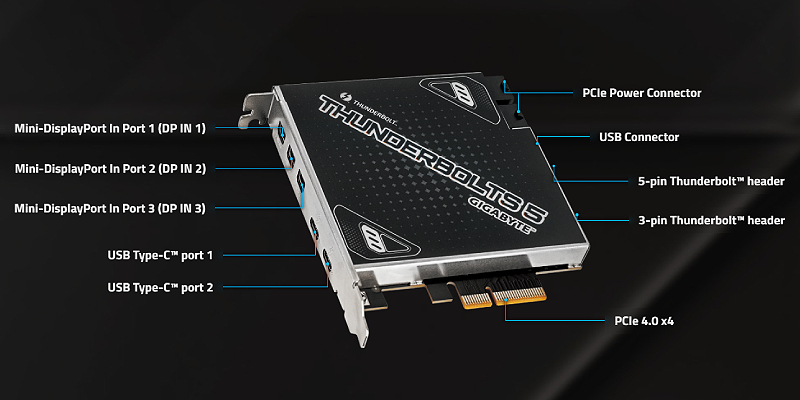

Intel® Thunderbolt™ 5 Certified add-in card​

Intel® JHL9580 Thunderbolt™ 5 controller​

Dual Thunderbolt™ 5 Ports (USB Type-C™)​

Deliver up to 80 Gb/s bi-directional bandwidth, or up to 120Gb/s single-direction bandwidth.

Provides maximum support for DisplayPort™ 2.1 with 8K at 60Hz*​

Daisy-chain up to 10 Devices (5 devices per port)​

Support PD3.1 standard (up to 100W)
