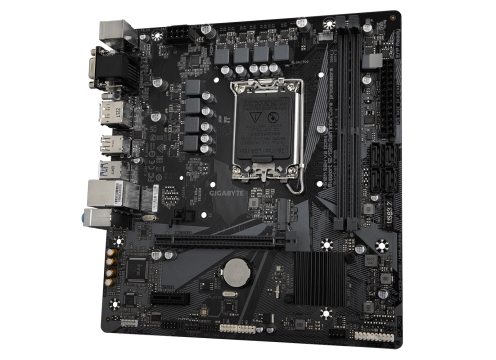

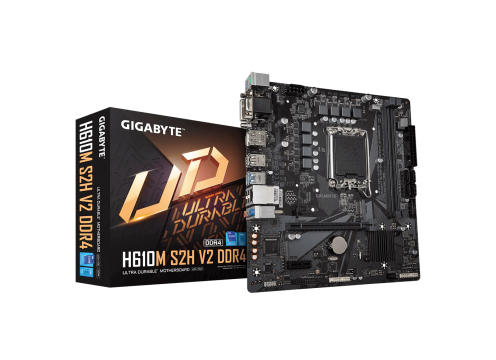

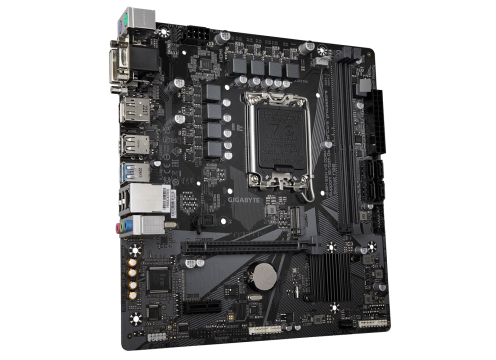

Gigabyte H610M S2H V2 DDR4
P/N:
GH610MS2HV2DDR4
Warranty:
3 Years
Manufacturer:
Gigabyte H610M S2H V2 DDR4. Intel H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0 Design, Gen3 x4 M.2, DisplayPort / HDMI / DVI-D/ D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6
Specification
Chipset
Intel H610
Socket
1700
Memory Type
DDR4
MB Form Factor
Micro ATX
Graphics O.B.
Graphics On CPU

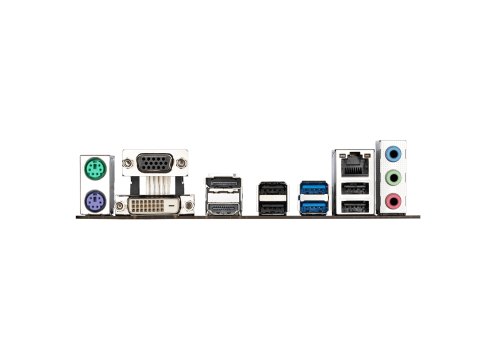

Graphics Interface
VGA
\ DVI
\ HDMI
\ DisplayPort
Network Connections
LAN 1 Gigabit
Front USB Connector
USB 2.0
\ USB 3.2
Audio O.B
3 port
DDR4 Slots
2
PCI-E x16
1
PCI-E x1
1
USB 3.2
4
USB 2.0
8
Storage Interface
SATA3
\ M.2 PCIe
SATA3 Ports
4
M.2 PCIe Connectors
1
MB Expansion Slots
PCIe 4.0 x16
\ PCIe 3.0 x1
COM Port
Optional
Package
Box
Remarks
1 x PS/2 keyboard | 1 x PS/2 mouse
Information
- Supports 13th/12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
