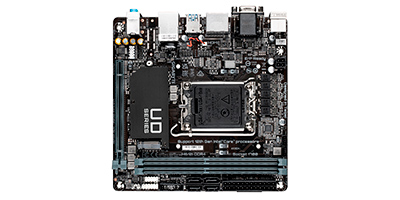

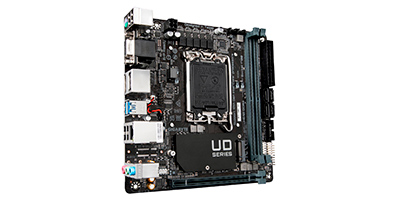

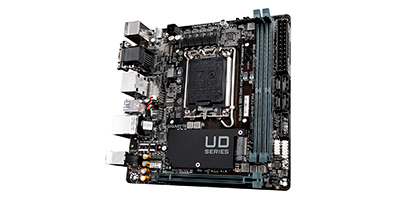

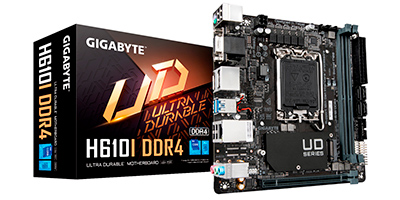

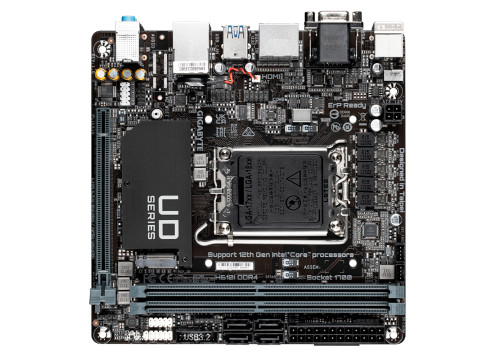

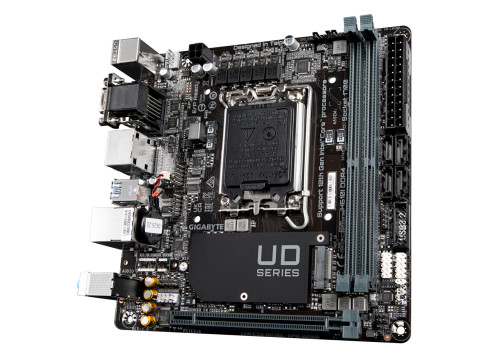

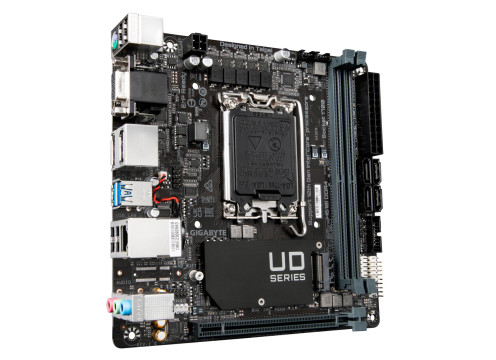

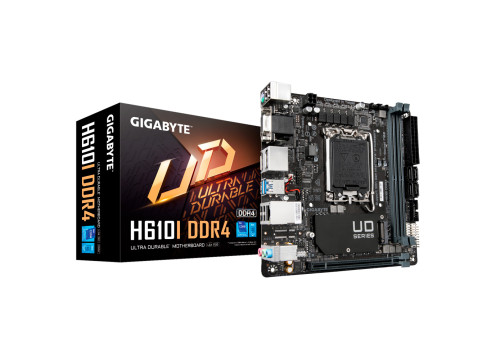

Gigabyte H610I DDR4 GH610IDDR4. Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6.
מפרט
ערכת שבבים
Intel H610
תושבת מעבד
1700
סוג זכרון
DDR4
תצורת לוח
Mini ITX
כרטיס מסך משולב
כרטיס מסך משולב
חיבור גרפי
VGA
\ HDMI
\ DisplayPort
חיבורי תקשורת
LAN 1 Gigabit
חיבור USB קדמי
USB 2.0
\ USB 3.2
כרטיס קול משולב
3 port
סלוטים DDR4
2
PCI-E x16
1
USB 3.2
4
USB 2.0
8
ממשק אחסון
SATA3
\ M.2 PCIe
חיבורי SATA3
4
חיבורי M.2 PCIe
1
חריצי הרחבה
Trusted Platform Module - TPM
חיבור סיריאלי COM
אופציונלי
אריזה
Retail - קופסה
מידע
| Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. 4+1+1 Phases DrMOS*. Solid capacitors to improve transient response and minimize oscillation. Solid Pin CPU Power Connector. * DrMOS adopted only on Vcore / VGT. |
 |
 |
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. |
| Solid Pin Power Connectors H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading. |
 |
 |
Solid Pin Power connector advantages Larger contact area for electricity More metal quantity to sustain higher power and generated heat Ultra durable and longer lifespan |
