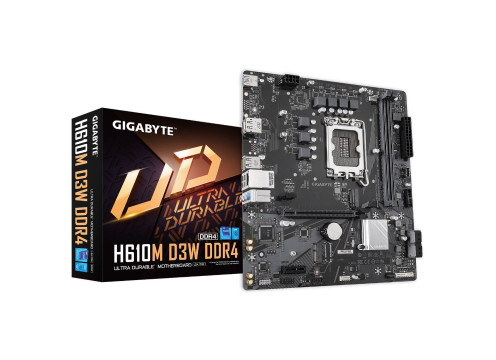

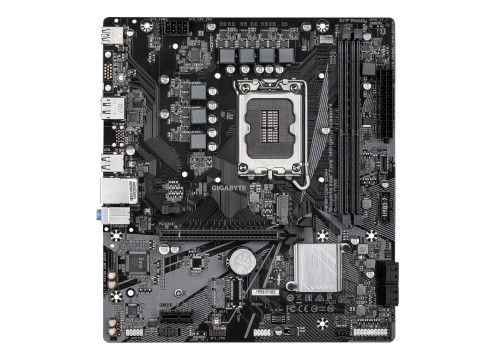

Gigabyte H610M D3W DDR4

P/N:

GH610MD3WDDR4

Warranty:

3 Years

Manufacturer:

Gigabyte H610M D3W DDR4. Intel H610 Motherboard with 5+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6. GH610MD3WDDR4
Specification
Information

Specification

Chipset

Intel H610

Socket

1700

Memory Type

DDR4

MB Form Factor

Micro ATX

Graphics Interface

HDMI
\ DisplayPort

Network Connections

LAN 1 Gigabit

USB Connector

USB 2.0
\ USB 3.2
\ USB Type-C

Audio O.B

3 port

DDR4 Slots

PCI-E x16

PCI-E x1

USB Type-C

USB 3.2

USB 2.0

Storage Interface

SATA3
\ M.2 PCIe

SATA3 Ports

M.2 PCIe Connectors

MB Expansion Slots

Trusted Platform Module (TPM)
\ M.2 (CNVi / Wireless Module)
\ PCIe 4.0 x16
\ PCIe 3.0 x1

COM Port

Optional

Information

Gigabyte H610M D3W DDR4

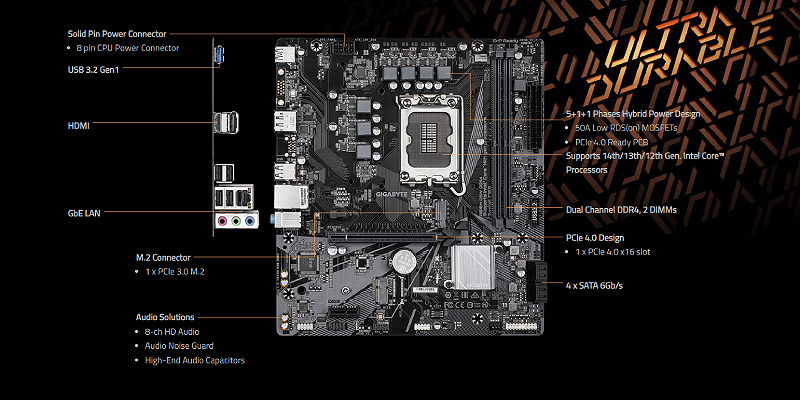

Intel® H610 Motherboard with 5+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6.

Supports Intel® Core™ 14th/ 13th/ 12th processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

5+1+1 Hybrid Digital VRM Design

GbE LAN with Bandwidth Management

NVMe PCIe 3.0 x4 M.2

High Quality Audio Capacitors and Audio Noise Guard

Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

GIGABYTE APP Center, Simple and Easy Use

Anti-Sulfur Resistors Design
