Gigabyte Brix Barebone BSRE-1505
P/N:
GB-BSRE-1505
Warranty:
3 Years
Manufacturer:
Gigabyte Brix Barebone BSRE-1505 GB-BSRE-1505. AMD Ryzen Embedded R1505G Dual Cores Processor. Integrated Graphics Processor – Radeon Vega 8 Graphics. Dual Channel DDR4 2400MHz, 2 x SO-DIMMs, Max. 32GB. 3xHDMI ports. Supporting a maximum resolution of 4096x2160@60Hz 2 x GbE LAN ports, Wi-Fi 802.11ac / BT4.2
Specification
CPU Model
AMD Ryzen Embedded R1505G Dual Core / 4 Threads / 5M Cache
CPU Series
AMD Ryzen Embedded
Memory Type
DDR4 SODIMM
Memory Size
Not Included - Upto 32GB
Memory Slots
2
Storage
Not included 2.5"
\ Not included M.2
Graphics O.B.
AMD Radeon VEGA
USB 3.1
2
USB 2.0
4
Graphics Interface
HDMI
Audio O.B
Headphone + Mic
Network Connections
Bluetooth 4
\ LAN 1 Gigabit
\ Wi-Fi 5 (802.11ac)
Disk Type
2.5"
\ M.2 2280
Remarks
Expansion Slots: Mini PCI slot | 2x Gigabit Lan
Information
| Small Outside, Powerful Inside The perfect choice for commercial workplaces. Available now with the latest AMD’s Embedded Solution. |
 |
 |
Performance GB-BSRE-1505 features the AMD Ryzen Embedded R1505G APU. The R1505G is a 2-core/4-thread SoC that delivers an optimal balance of performance with up to 3x generational performance improvement per watt, and 4x better CPU and graphics performance per dollar than the competition. |
| Triple-Display Support The GB-BSRE-1505 BRIX PRO model supports up to 3 independent displays through its 3x HDMI ports. Combining this with 4K resolution on each output gives users the flexibility to configure their working environment without any limitation. |
 |
 |

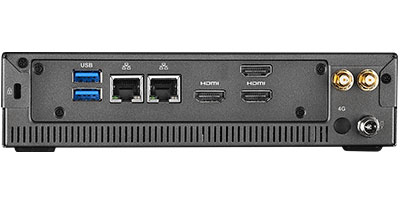

Connectivity GB-BSRE-1505 offers a plethora of available connections. It provides multiple ports such as USB 3.2 ports, Wi-Fi connection, 3 x HDMI ports, legacy USB 2.0 ports and more. It is equipped with the most of the modern connectivity to be able to cover the needs of a business at all times. |
