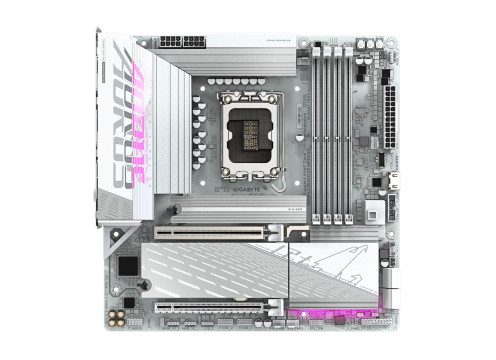

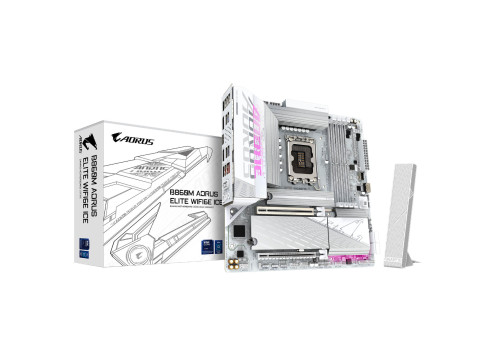

Gigabyte B860M AORUS ELITE WIFI6E ICE

P/N:

GB860MAORUSELTWF6EICE

Warranty:

3 Years

Manufacturer:

Gigabyte B860M AORUS ELITE WIFI6E ICE, Supports Intel Core Ultra processors (Series 2) GB860MAORUSELTWF6EICE
Specification
Information

Specification

Chipset

Intel B860

Socket

1851

Memory Type

DDR5

MB Form Factor

Micro ATX

Graphics Interface

HDMI
\ DisplayPort
\ USB Type-C

Network Connections

Wi-Fi 6/6E (802.11ax)
\ LAN 2.5 Gigabit
\ Bluetooth 5.3

Front USB Connector

USB 2.0
\ USB 3.2
\ USB Type-C

RAID

0,1,5,10

Audio O.B

2 port + S/PDIF

Wirelless Adapter

Yes

DDR5 Slots

PCI-E x16

PCI-E x16 (x4) Slot

Thunderbolt

USB Type-C

USB 3.2

USB 2.0

Storage Interface

SATA3
\ M.2 PCIe

SATA3 Ports

M.2 PCIe Connectors

MB Expansion Slots

Trusted Platform Module (TPM)
\ PCIe 4.0 x16, mode x4
\ PCIe 5.0 x16

Information

Gigabyte B860M AORUS ELITE WIFI6E ICE

Supports Intel® Core™ Ultra processors (Series 2)

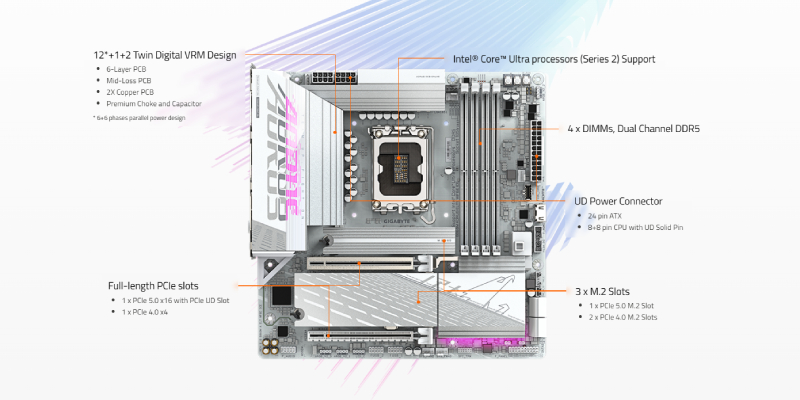

Digital twin 12+1+2 phases VRM solution

Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support

D5 Bionic Corsa for Infinite Memory Performance

AI Perfdrive : Provides optimal and customized BIOS preset profile for users

EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click : M.2 heatsinks with screwless design

Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup

Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4

Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna

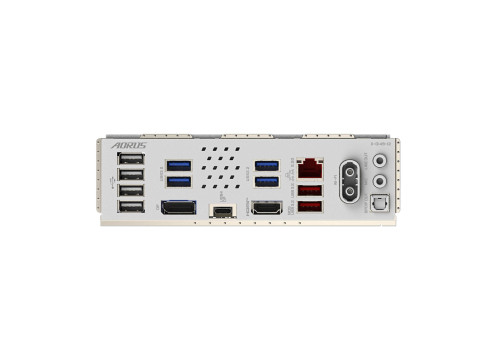

Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
