Gigabyte B760M D3HP DDR4

P/N:

GB760MD3HPDDR4

Warranty:

3 Years

Manufacturer:

Gigabyte B760M D3HP DDR4 - Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform. GB760MD3HPDDR4
Specification
Information

Specification

Chipset

Intel B760

Socket

1700

Memory Type

DDR4

MB Form Factor

Micro ATX

Graphics Interface

VGA
\ HDMI
\ DisplayPort

Network Connections

LAN 1 Gigabit

Front USB Connector

USB 2.0
\ USB 3.2
\ USB Type-C

RAID

0,1,5,10

Audio O.B

3 port

DDR4 Slots

PCI-E x16

PCI-E x1

USB Type-C

USB 3.2

USB 2.0

Storage Interface

SATA3
\ M.2 PCIe

SATA3 Ports

M.2 PCIe Connectors

MB Expansion Slots

Trusted Platform Module (TPM)
\ PCIe 4.0 x16
\ PCIe 3.0 x1

COM Port

Optional

Information

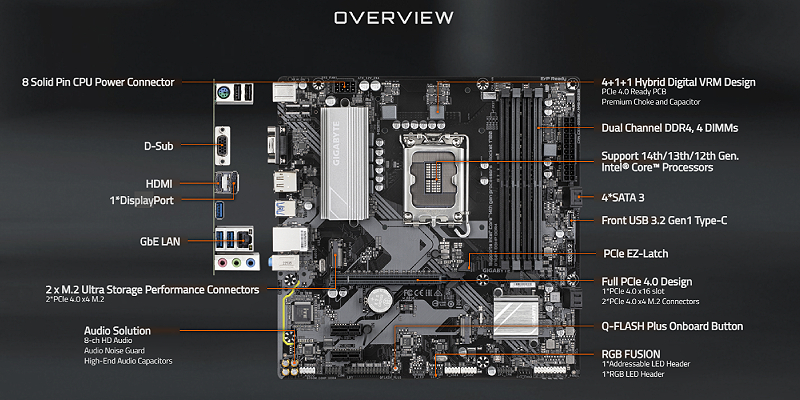

Gigabyte B760M D3HP DDR4

Supports Intel® Core™ 14th/ 13th /12th processors.

• Unparalleled Performance:Hybrid 4+1+1 Phases Digital VRM Solution.

• Dual Channel DDR4:4*DIMMs XMP Memory Module Support.

• Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors.

• Fast Networks:GbE LAN.

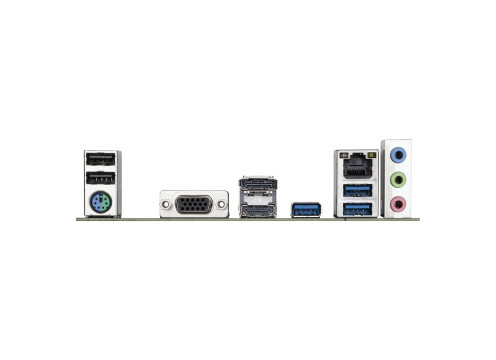

• Extended Connectivity:Front USB-C® 5Gb/s, DP, HDMI, D-Sub.

• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.

• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card.
