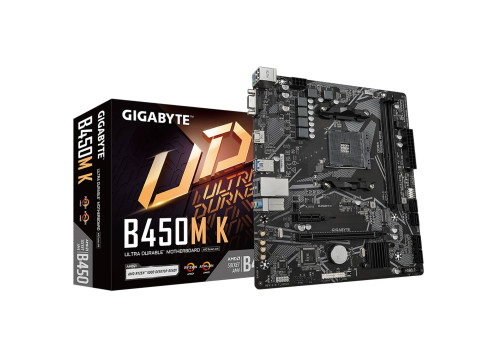

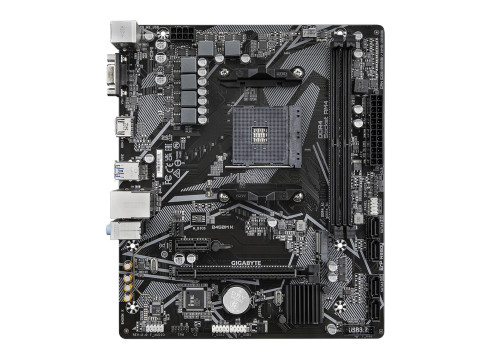

Gigabyte B450M K 2.0
P/N:
GB450MK2.0
Warranty:
3 Years
Manufacturer:
Gigabyte B450M K 2.0, Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors. GB450MK2.0
Specification
Chipset
AMD B450
Socket
AM4
Memory Type
DDR4
MB Form Factor
Micro ATX
Graphics Interface
VGA
\ HDMI
Network Connections
LAN 1 Gigabit
Front USB Connector
USB 2.0
\ USB 3.2
RAID
0,1,10
Audio O.B
3 port
DDR4 Slots
2
PCI-E x16
1
PCI-E x1
1
Thunderbolt
1
USB 3.2
6
USB 2.0
6
Storage Interface
SATA3
\ M.2 PCIe
SATA3 Ports
4
M.2 PCIe Connectors
1
MB Expansion Slots
PCIe 3.0 x16
\ PCIe 2.0 x1
Information
Gigabyte B450M K 2.0
AMD B450 Ultra Durable Motherboard with GbE LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor Design.
Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™
with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors.
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs.
PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support.
GbE LAN with Bandwidth Management.
8-Channel HD Audio with High Quality Audio Capacitors.
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers.
GIGABYTE APP Center, Simple and Easy Use.
