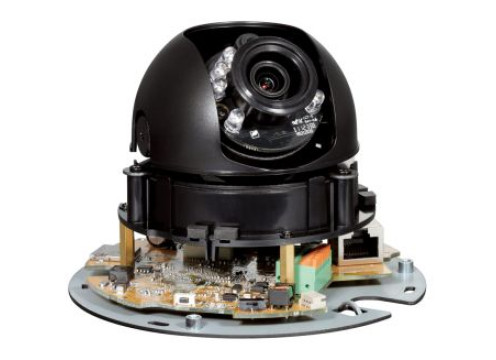

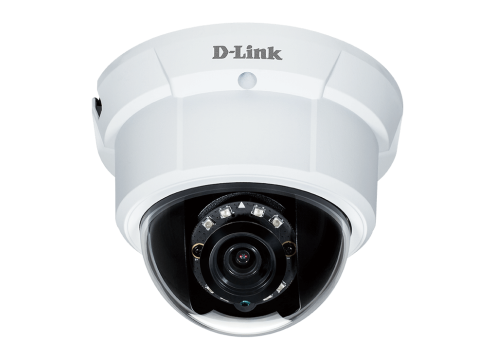

D-Link IP Cam Dome 2MP with POE, Day/Night IR 10M Vandal Proof ONVIF

Hardware Profile
• 1/2.7” Full HD progressive megapixel CMOS sensor
• 10 meter IR illumination distance
• Built-in Infrared-Cut Removable (ICR) Filter module
• Minimum illumination: 0.12 lux (day mode), 0 lux (night mode) with IR LED
• Fixed lens, 4 mm F1.5 with 77.4 degree horizontal viewing angle
• 256 Mbytes SDRAM
• 128 Mbytes of flash memory
• 16X digital zoom

Image Features
• Configurable image size, quality and bit rate
• Time stamp and text overlays
• 3 configurable motion detection windows
• ePTZ function
• 5 configurable privacy masks
• Flip & mirror
• Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression
• H.264/MPEG4/MJPEG dual format compression simultaneously
• JPEG for still image
• H.264/MPEG-4 multicast streaming

Video Resolution
1920x1080 @ 15 fps, 1280x1024 @ 20 fps, 1280x720 @ 30 fps, 640x480 @ 30 fps, 320x240 @ 30 fps, 176x144 @ 30 fps

Audio Features
• GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
• MPEG-4 AAC audio encoding, bit rate: 16 kpbs to 128 kbps
• Supports two-way audio and audio mute

Network
Network Protocols
IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, LLTD, CoS/QoS, SNMP, IGMP, 802.1x, ONVIF Compliant

Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest encryption
• HTTPS streaming
• Remote client access control

Event Management
• Motion detection
• Tamper detection
• Supports multiple HTTP, SMTP and FTP servers
• Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
• Multiple event notification
• Multiple recording methods for easy backup

Remote Management
• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive or NAS via web browser

Surveillance Software Function
• Remote management/control of up to 32 cameras
• Viewing of up to 32 cameras on one screen
• Supports all management functions provided in web interface
• Scheduled motion triggered, or manual recording options

Supported PDA, Mobile Phones, and Software
Handsets with 3GPP player, QuickTime 6.5, Real Player 10.5, Windows

External Device Interface
• DI and DO for external sensor and alarm
• External audio input (MIC in)
• External audio/video output (AV out)
• TV system switch (NTSC/ PAL)
• MicroSD card slot
