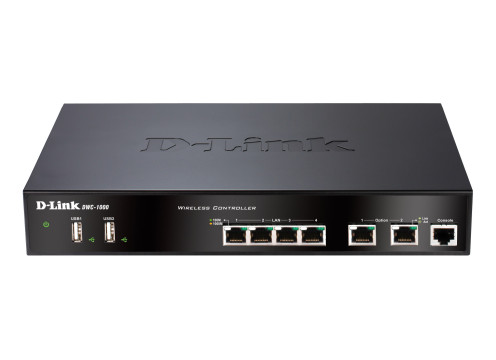

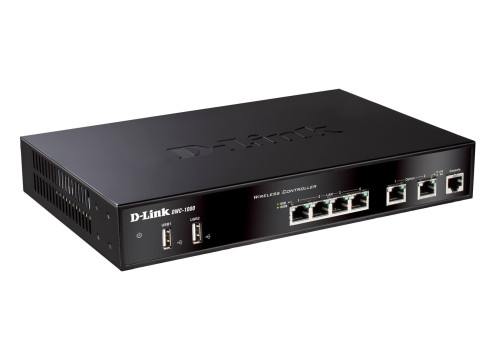

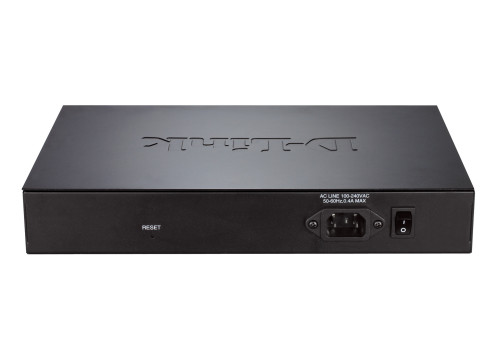

D-Link Access Point Wireless Controller

מק"ט:

DWC-1000

אחריות:

3 שנים

יצרן:

D-Link

קישור לאתר יצרן

With a robust and comprehensive security detection system, the DWC-1000 also enables managed APs to block potential attacks from unauthorized users and devices, especially for wireless environments. With a robust and comprehensive security detection system, the DWC-1000 also enables managed APs to block potential attacks from unauthorized users and devices, especially for wireless environments.

הצעת מחיר

מפרט

מידע

מפרט

חיבור אלחוטי

Wireless N

מהירות מבואות

10/100 Mbit

\ 1 Gbit

מספר יציאות

מידע

Interface
• Ethernet:
2 10/100/1000 option ports*
4 10/100/1000 LAN ports
• USB: 2 USB 2.0 ports
• Console: RJ-45

Capacity and Performance

• Maximum Access Points per unit (default/upgrade): 6/24**
• Maximum Access Points per cluster (default/upgrade): 24/96**
• Concurrent Captive Portal authentication users (Wired/ Wireless): 124/ 400
• Dedicated IPSec VPN tunnels***: 70
• Dedicated PPTP/L2TP VPN tunnels***: 25
• Dedicated SSL VPN tunnels***: 20

Access Point Management
• Compatible Managed APs: DWL-8600AP, DWL-6600AP, DWL-3600AP
• AP Discovery & Control: Layer-2, Layer-3
• AP Monitoring:
Managed AP
Rogue AP
Authentication Fail AP
Standalone AP
• Client Monitoring:
Authenticated Client
Rogue Client
Authentication Fail Client
Ad-hoc Client
• Supports Centralized RF/Security Policy Management

Roaming
• Fast Roaming
• Intra-controller/Inter-controller roaming
• Intra-subnet/Inter-subnet roaming

Security
• Wireless Security:
WEP
Dynamic WEP
WPA Personal/Enterprise
WPA2 Personal/Enterprise
• Wireless Instruction Detection & Prevention System (WIDS):
Rogue and Valid AP Classification
Rogue AP Mitigation
• LAN Security: 802.1x port-based access control and guest VLAN
• Authentication:
Captive Portal
MAC Authentication

VLAN
• VLAN Group: up to 255 entries
• 802.1q VLAN Tagging
• Subnet-based VLAN
• Port-based VLAN

Firewall System***
• Policy:
Each feature supports 100 rules
Supports up to 600 firewall rules
• Dynamic Route: RIPv1, RIPv2
• Dynamic DNS
• NAT, PAT
• Web Content Filtering:
Static URL
Keywords

Networking***
• Route Failover
• Outbound Load Balancing

Virtual Private Network (VPN)***
• Encryption Methods: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
• IPSec NAT Traversal
• Dead Peer Detection
• IP Encapsulating Security Payload (ESP)
• IP Authentication Header (AH)
• VPN Tunnel Keep Alive
• Hub and Spoke

SSL Virtual Private Network (SSL VPN)***
• SSL Encryption Methods: DES, 3DES, AES
• SSL Message Integrity: MD5, SHA1

System Management
• Web-based User Interface: HTTP
• Command Line Interface
• SNMP: v1, v2c, v3
