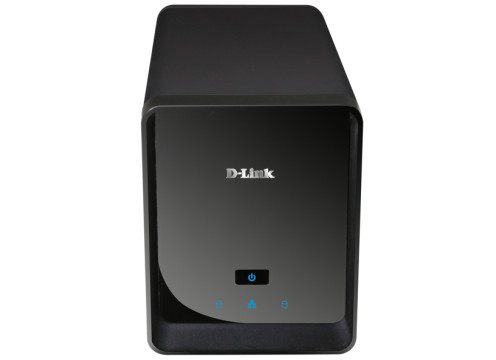

D-Link 2-Bay Network Video Recorder NVR for D-Link IPCAMs

Firmware Specifications

OS

+ Linux

Supported Cameras

+ Supports all D-Link network cameras. Includes support for auto-discovery, and up to 1.3 megapixel resolution.

Recording Performance

+ Up to 120fps at D1/240fps at CIF for 8 channels

Camera Search

+ UPnP

Audio & Video Recording

+ Synchronized audio & video recording

Compression Format

+ H.264, MPEG-4, M-JPEG (for supported cameras)

Video Setting

+ Resolution, quality, frame rate, enable audio, go to camera interface

Recording Type

+ record by schedule, manual record and event-based recording (Motion detection from camera)

Remote Live View

+ Supported via IE remote live viewer

+ Maximum 8 simultaneous channels

Remote Live View Control

+ Live view, preset/go, patrol, focus, PTZ functions, remote IO (DNS-726-4 only), snapshot, full screen, digital zoom

Remote Playback Control

+ Playback with normal, fast forward/rewind and step forward/rewind

Remote Playback

+ Supported via IE and NVR client

+ Playback system with timeline GUI, search by event, area, cameras, date and time

+ IE & NVR client support 1 channel playback

+ Digital zoom to specified area

Overwrite Recording

+ Auto recycling when disk storage is full

File Export

+ Export videos to “AVI” or “ASF” file

+ Export images to “BMP” or “JPG” file

User Account

+ Additional accounts can be created to allow user access to the system, and specify authorization for camera channels, PTZ, etc.

DDNS

+ D-Link DDNS server support

System Time

+ Set the system time (D-Link NTP, input time, sync with computer, Daylight Saving Time)

Remote Backup

+ Remote software can backup raw data to redundant storage

+ Auto backup the Video of previous day to FTP server

System Status

+ Camera status, System status

+ Still picture EMAP suppport

Network Service Protocols

+ IPV4, ARP, TCP, UDP, ICMP

+ DHCP Client

+ NTP Client (D-Link)

+ DNS Client

+ DDNS Client (D-Link)

+ SMTP Client

+ HTTP Server

+ PPPoE

+ UPnP

+ IP filtering

User Interface

+ Internet Explorer v6 or later

+ NVR Search utility

Hardware Specifications

Standards

+ IEEE 802.3/u/z

+ Auto MDI/MDI-X

+ SATA I, II

HDD

+ HDD control & manage via PC

+ Reformat Disk

+ RAID 0, 1

+ JBOD

Two Reset modes

+ Reset firmware GUI button

+ HW reset button (hold for 5 seconds)

Flash ROM

+ 32MB

RAM

+ 128MB DDR

Network Interface

+ Gigabit Ethernet LAN port (10/100/1000 Mbps)

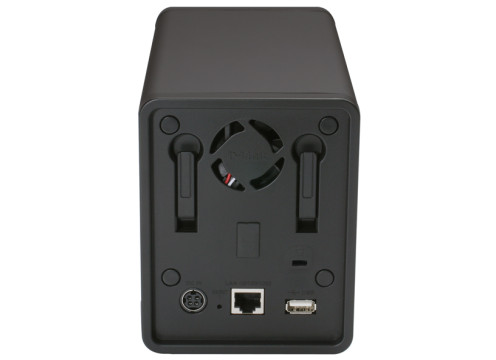

I/O ports

+ RJ45 port x1

+ DC-in jack x1

+ USB port for UPS status update (optional)

Power Adapter

+ DC12V/3A, DC5V/3A

Reset Button

+ Reset to factory default

Security

+ Front panel lock

+ Device lock hole

Power Consumption

+ Max. power consumption: 23.59W

+ Standby state max. power consumption: 7.26W

Dimension (W x D x H)

+ 198 (W) x 104 (D) x 132 (H) mm (7.8 x 4.1 x 5.2 inches)

Weight

+ 1.23 kg (2.7 lbs)

Operating Temperature

0˚ to 55˚ C (32˚ to 131˚ F)

Storage Temperature

-20˚ to 70˚ C (-4˚ to 158˚ F)

Humidity

+ Operating: 5% to 90% (non-condensing)
