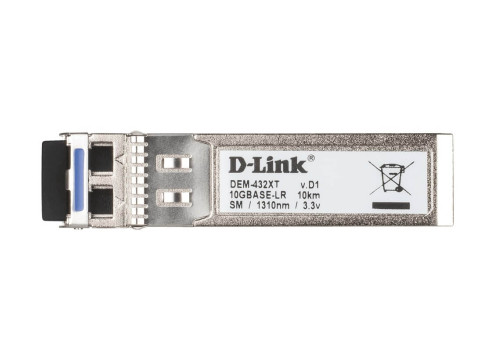

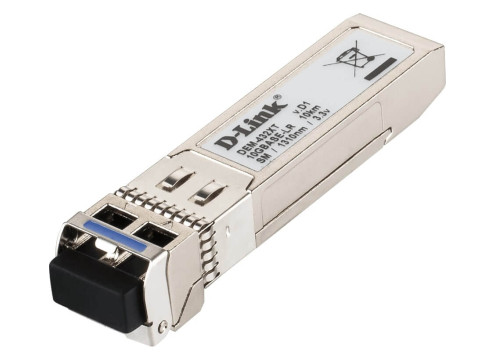

D-Link 10GBASE-LR SFP+ Transceiver Up to 10 km

D-Link 10GBASE-LR SFP+ Transceiver Up to 10 km

מק"ט:

DEM-432XT

אחריות:

3 שנים

יצרן:

D-Link

קישור לאתר יצרן

The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

הצעת מחיר

מפרט

מידע

מפרט

Single / Multi Mode

Single Mode

סוג חיבור אופטי

מהירות מבואות

10 Gbit

מידע

General features
Standard
• IEEE 802.3ae 10GBase-LR
Wavelength
• 1310 nm
Data Rate
• 10 Gbps
Connector
• Duplex LC
Fiber Type
• 9/125 um Single-mode Fiber
Maximum Fiber Cable Length
• 10 km
Transmit Power Range
• 0,5 to -8 dBm
Receive Power Range
• -1 to -14.4 dBm
Sensitivity
• -14.4 dBm
Supported Features
• Hot swap
• MSA compliant
• RoHS compliant
Physical Parameters
Power Support
• 3.3 V
Supply Current
• 300 mA
Temperature
• Operating: 0° to 70°C
• Storage: -40° to 85°C
Humidity
• Operating: 0% to 85%
• Storage: 0% to 85%
Dimensions
• 55.9 mm x 13.7 mm x 8.5 mm
Certificates
• Class 1 laser: EN 60825-1
• FDA 21 CFR 1040.10 и 1040.11

The DEM-432XT uses the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.

The DEM-432XT transceiver uses standard duplex LC connector for fiber cable connection. It conforms to industry standards and is interoperable with D-Link 10 Gigabit Ethernet switches. All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP+ slot without having to turn off the power of the connected device.
