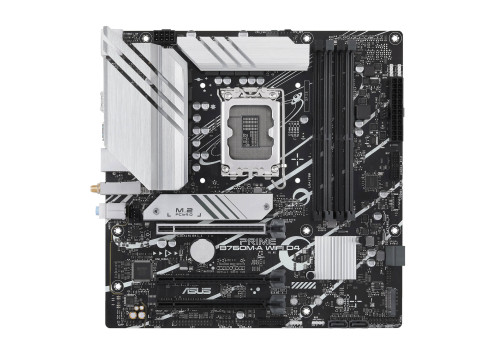

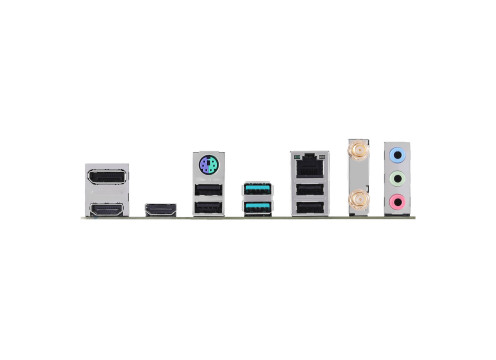

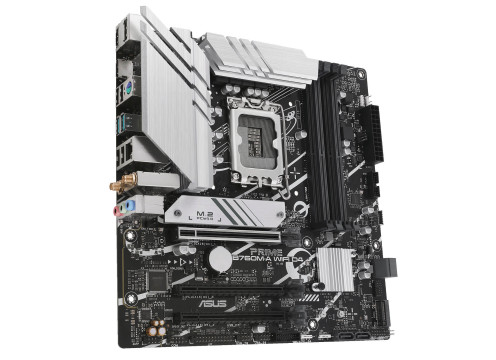

Asus PRIME B760M-A WiFi D4 90MB1CX0-M1EAY0 | Intel B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI, SATA 6 Gbps, Rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync
מפרט
ערכת שבבים
Intel B760
תושבת מעבד
1700
סוג זכרון
DDR4
תצורת לוח
Micro ATX
חיבור גרפי
HDMI
\ DisplayPort
חיבורי תקשורת
Wi-Fi 6/6E (802.11ax)
\ LAN 2.5 Gigabit
\ Bluetooth 5.2
חיבור USB קדמי
USB 2.0
\ USB 3.2
\ USB Type-C
RAID
0,1,5,10
כרטיס קול משולב
3 port
כרטיס רשת אלחוטי
יש
סלוטים DDR4
2
PCI-E x16
1
PCI-E x16 (x4) Slot
1
PCI-E x4
1
USB Type-C
1
USB 3.2
2
USB 2.0
4
ממשק אחסון
SATA3
\ M.2 PCIe
חיבורי SATA3
4
חיבורי M.2 PCIe
1
חריצי הרחבה
PCIe 4.0 x16
\ PCIe 4.0 x16, mode x4
\ PCIe 3.0 x1
חיבור סיריאלי COM
יש
מידע
Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
