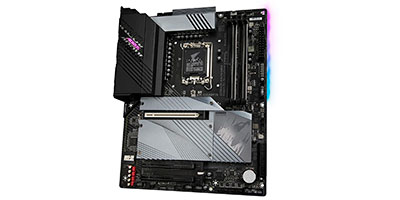

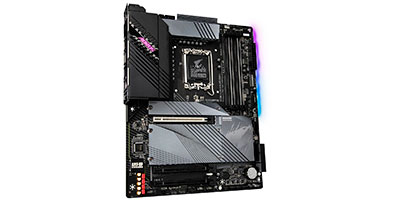

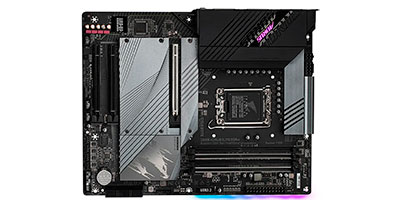

Intel® Z690 AORUS Motherboard with 16+1+2 Digital VRM Design, DDR5 XTREME MEMORY Design, PCIe 5.0 Design, Fully Covered Thermal Design , 4*PCIe 4.0 M.2 with Enlarged Thermal Guards, 2.5GbE LAN, WIFI 6 802.11ax, 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen 2x2 TYPE-C® , RGB FUSION 2.0, Q-Flash Plus. Supports 12th Gen Intel® Core™ Series Processors. Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. 16+1+2 Phases Direct VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor. DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing. Advanced Thermal Solution with Fully Covered Thermal Design and Fins-Array II. WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna. Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors. Fast 2.5GbE LAN with Bandwidth Management. Four Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards. SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
מפרט
ערכת שבבים
Intel Z690
תושבת מעבד
1700
סוג זכרון
DDR5
תצורת לוח
ATX
כרטיס מסך משולב
Integrated Graphics Processor-Intel
חיבור גרפי
DP
חיבורי תקשורת
Wi-Fi 6/6E (802.11ax)
\ LAN 2.5 Gigabit
\ Bluetooth 5.2
חיבור USB קדמי
USB 2.0
\ USB 3.2
\ USB Type-C
RAID
0,1,5,10
כרטיס קול משולב
2 port + S/PDIF
כרטיס רשת אלחוטי
יש
סלוטים DDR5
4
PCI-E x16
1
PCI-E x16 (x4) Slot
2
Thunderbolt
2 x Thunderbolt™ add-in card connectors
USB Type-C
2
USB 3.2
10
USB 2.0
8
ממשק אחסון
SATA3
\ M.2 PCIe
\ M.2 SATA
חיבורי SATA3
6
חיבורי M.2 PCIe
3 + 1(SATA and PCIe SSD support)
חריצי הרחבה
Trusted Platform Module - TPM
אריזה
Retail - קופסה
מידע
| UNPARALLELED PERFORMANCE With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming. |
 |
 |
ADVANCED THERMAL SOLUTION GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming. |
| NEXT GENERATION CONNECTIVITY GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. |
 |
 |
DEFINITIVE AESTHETICS GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. |
| ULTRA DURABLE GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable. |
 |
