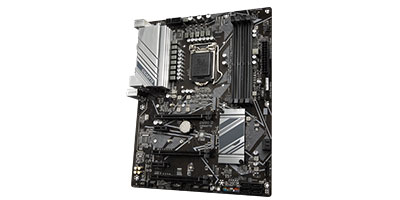

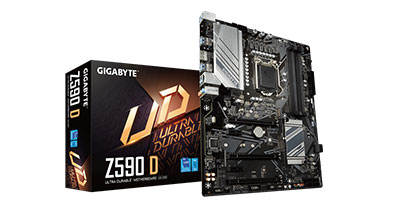

Gigabyte Z590 D
מק"ט:
GZ590D
אחריות:
שלוש שנים
יצרן:
Intel® Z590 Ultra Durable Motherboard with Direct 12+1 Phases Digital VRM, Full PCIe 4.0* Design, Extended Thermal Design, PCIe 4.0 M.2, GbE Gaming LAN, 8-ch HD Audio with Audio Caps, RGB FUSION 2.0, Q-Flash Plus Supports 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Direct 12+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs Shielded Memory Routing for Better Memory Overclocking Enlarged VRM Heatsink with Multi-Cut to increased surface contact Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
מפרט
מידע

מפרט

צ'יפסט
Intel® Z590 Express Chipset
תושבת מעבד
1200
תצורת לוח
ATX
סוג זכרון
DDR4
סלוטים DDR4
ממשק אחסון
SATA3
\ M.2 PCIe
\ M.2 SATA
חיבורי SATA3
חיבורי M.2 PCIe
1+1 (SATA and PCIe SSD support)
RAID
0,1,5,10
חריצי הרחבה
Trusted Platform Module - TPM
PCI-E x16
PCI-E x16 (x4) Slot
PCI-E x1
Thunderbolt
2 x Thunderbolt™ add-in card connectors
חיבור USB2.0
USB3.2 Ports
חיבור USB קדמי
USB 2.0
\ USB 3.2
כרטיס מסך משולב
Integrated Graphics Processor-Intel
חיבור גרפי
DP
כרטיס קול משולב
3 Port
כרטיס רשת
Realtek GbE
חיבורי תקשורת
GIGABIT LAN
חיבור סיריאלי COM
אופציונלי
אריזה
Retail - קופסה

מידע

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

  • Digital PWM Controller to deliver appropriate voltage to the CPU.
  • Direct 12+1 Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
  • All-solid capacitors to improve transient response and minimize oscillation.
  • 8+4 Solid Pin CPU Power Connectors.
RGB FUSION 2.0
With Z590 D Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
