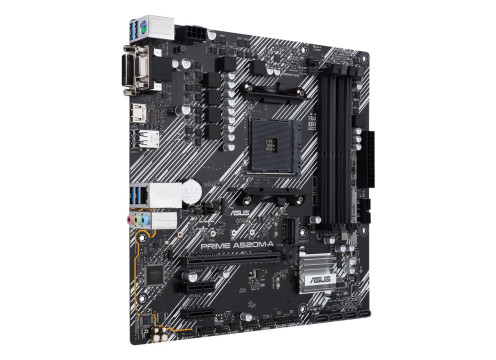

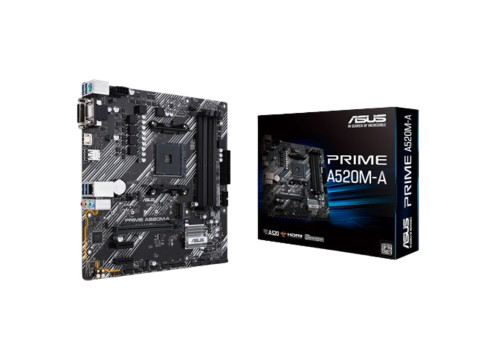

Asus PRIME A520M-A

מק"ט:

90MB14Z0-M0EAY0

אחריות:

3 שנים

יצרן:

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/DVI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A
מפרט
מידע

מפרט

ערכת שבבים

AMD A520

תושבת מעבד

AM4

סוג זכרון

DDR4

תצורת לוח

Micro ATX

כרטיס מסך משולב

AMD APU

חיבור גרפי

VGA
\ DVI
\ HDMI

חיבורי תקשורת

LAN 1 Gigabit

חיבור USB קדמי

USB 2.0
\ USB 3.2

RAID

0,1,10

כרטיס קול משולב

3 port

סלוטים DDR4

PCI-E x16

PCI-E x1

USB 3.2

USB 2.0

ממשק אחסון

SATA3
\ M.2 PCIe
\ M.2 SATA

חיבורי SATA3

חיבורי M.2 PCIe

1 (PCIE 3.0 x4 and SATA modes)

חריצי הרחבה

Trusted Platform Module - TPM

חיבור סיריאלי COM

אופציונלי

אריזה

Retail - קופסה

מידע

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
PCIe 3.0 M.2 (up to 32 Gbps) Achieve speed with onboard M.2
M.2 slot supports up to 22110 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.
USB 3.2 Gen 1 Type-A

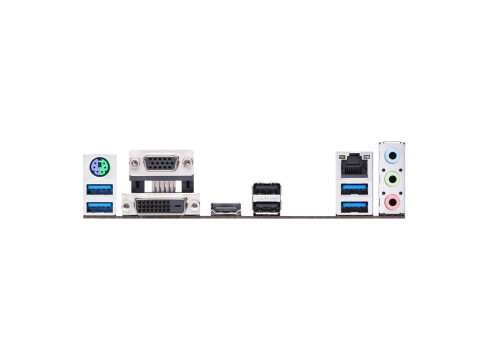

Numerous USB ports support high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
